Usage: Transmission Chain, Drag Chain, Conveyor Chain, Dedicated Special Chain
Material: Stainless steel
Surface Treatment: Polishing
Feature: Heat Resistant
Chain Size: 1/2"*3/32"
Structure: Welded Chain
●
Material: Q235 weldable low carbon manganese steel
●
Automatic Production Line Operateswith high production efficiency and fast delivery
●
The surface is smooth without burrfirm and durable
Product Name：Stainless Steel Link Chain
Material：stainless steel 316 or 304 or carbon
Surface finish：Polished or hot dip galvanized or electro galvanized
Color：Nickel White
Type：DIN763(DIN5685C), DIN766(DIN5685A), Australian type, ASTM standard(G30, G43, G70, G80) , Norwegian type, Korean type, US type, double loop chain, DIN5686 knotted chain, Japanese type and so on
Advantage：Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Package：Gunny bag, plastic reel, wooden reel, carton, steel drum or as per your requests
Used：These can be used for a variety of applications.Sail boats and yachts, railings, industrial and for shade sails.

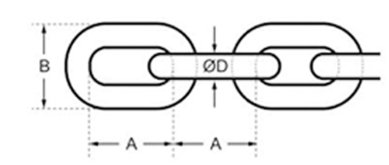

| Item No. | Link specification | Test load | Breaking Load | Net wt per 200FT | ||||
| d | P | W | kg | kg | kg | |||
| In | mm | mm | mm | B.F. | H.D.G. | |||
| HY-1/8 | 1/8 | 3.2 | 23 | 12 | 200 | 400 | 10.4 | 10.7 |
| HY-5/32 | 5/32 | 4 | 27 | 15 | 300 | 600 | 16.6 | 17.5 |
| HY-3/16 | 3/16 | 4.7 | 31 | 17 | 400 | 800 | 22.4 | 23.3 |
| HY-7/32 | 7/32 | 5.5 | 32 | 19 | 550 | 1100 | 32 | 33 |
| HY-1/4 | 1/4 | 6.35 | 33 | 21 | 750 | 1500 | 43.5 | 44.8 |
| HY-5/16 | 5/16 | 7.94 | 48 | 31 | 1200 | 2400 | 68 | 70 |
| HY-3/8 | 3/8 | 9.5 | 60 | 37 | 1700 | 3400 | 96 | 99 |
| HY-7/16 | 7/16 | 11.11 | 71 | 41 | 2300 | 4600 | 126 | 129 |
| HY-1/2 | 1/2 | 12.7 | 85 | 48.5 | 3000 | 6000 | 167 | 172 |
| HY-5/8 | 5/8 | 15.8 | 114 | 61.5 | 4700 | 9400 | 256 | 264 |
| HY-3/4 | 3/4 | 19 | 125 | 75 | 6800 | 13600 | 381 | 392 |
| HY-7/8 | 7/8 | 22.2 | 140 | 88 | 9250 | 18500 | 527 | 543 |
| HY-1 | 1 | 25.4 | 155 | 100 | 12150 | 24300 | 696 | 716 |
