Usage: Transmission Chain, Drag Chain, Conveyor Chain, Dedicated Special Chain
Material: Alloy
Surface Treatment: Electroplating
Feature: Heat Resistant
Chain Size: 2mm-13mm
Structure: Welded Chain
●
Material: Q235 weldable low carbon manganese steel
●
Automatic Production Line Operateswith high production efficiency and fast delivery
●
Product Description
1. Surface treatment is electric galvanized.
2. usage is for security, showing,traffice chain.
3. Certificate: ISO9000, SGS etc.
4. type: Grade 30 not overhead lifting product.

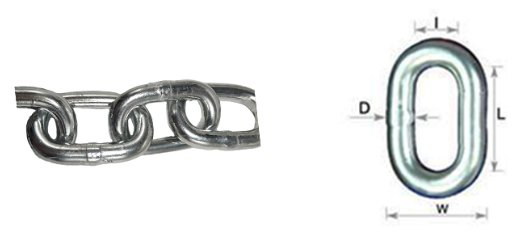

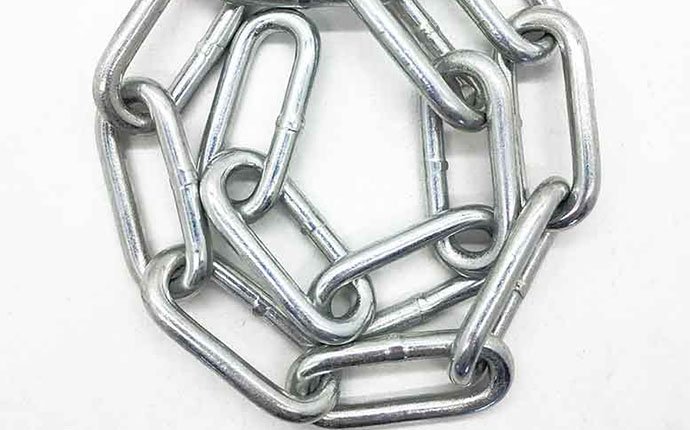

DIN 5685 C Long Link Chain
| Size | Inside Length | Outside Width | Weight Per 100M | Working Load | Breaking Load | Grade | |||
| MM | MM | MM | KG | N | N | ||||
| 2 | 12 | 22 | 8 | 7 | 6 | 500 | 1250 | A | C |
| 2.5 | 14 | 24 | 10 | 11 | 10 | 750 | 2000 | A | C |
| 3 | 16 | 26 | 12 | 16.5 | 15 | 1120 | 2800 | A | C |
| 3.5 | 18 | 28 | 14 | 22.5 | 20 | 1500 | 3850 | A | C |
| 4 | 19 | 32 | 16 | 30 | 27 | 2000 | 5000 | A | C |
| 4.5 | 20 | 34 | 18 | 39.5 | 35 | 2500 | 6300 | A | C |
| 5 | 21 | 35 | 20 | 50 | 43 | 3150 | 7750 | A | C |
| 5.5 | 23 | 38.5 | 22 | 60.5 | 52 | 3800 | 9500 | A | C |
| 6 | 24 | 42 | 24 | 73 | 63 | 4500 | 11500 | A | C |
| 6.5 | 26 | 45.5 | 26 | 86 | 74 | 5400 | 13500 | A | C |
| 7 | 28 | 49 | 28 | 100 | 86 | 6000 | 15000 | A | C |
| 8 | 32 | 52 | 32 | 130 | 100 | 8000 | 20000 | A | C |
| 8.5 | 34 | 56 | 34 | 149 | 125 | 9000 | 22500 | A | C |
| 9 | 36 | 59 | 36 | 165 | 141 | 10000 | 25000 | A | C |
| 10 | 40 | 65 | 40 | 205 | 175 | 12500 | 31000 | A | C |
| 11 | 44 | 72 | 44 | 250 | 211 | 15000 | 38000 | A | C |
| 12 | 48 | 78 | 48 | 290 | 255 | 18000 | 45000 | A | C |
| 13 | 52 | 82 | 52 | 345 | 295 | 21200 | 53000 | A | C |
