Usage: Transmission Chain, Drag Chain, Conveyor Chain, Dedicated Special Chain
Material: Stainless steel
Surface Treatment: Polishing
Feature: Heat Resistant
Chain Size: 1/8"-1"
Structure: Welded Chain
●
The product has beeninspected atvarious levels and conforms tothe industry standard
●

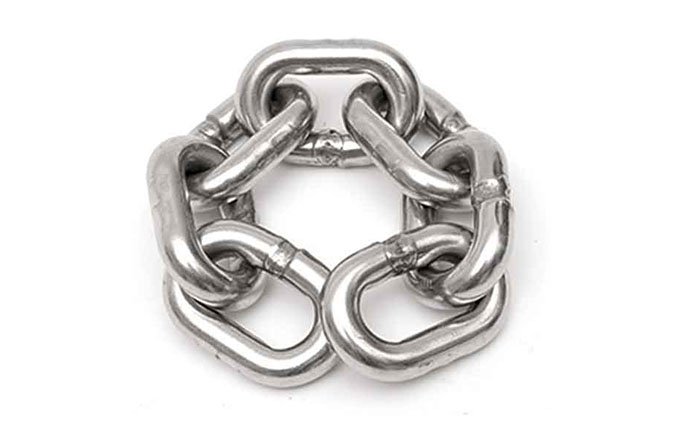

Strictly select raw materials that meetindustry standardsand are processed and manufactured
●

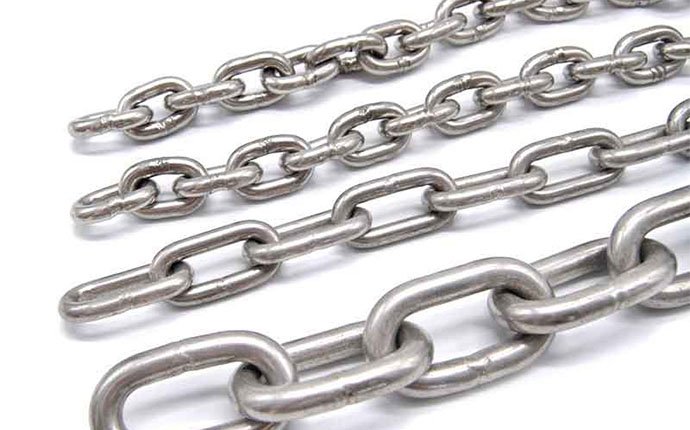

We can support processing customization accordingto the reasonable needs oe customers

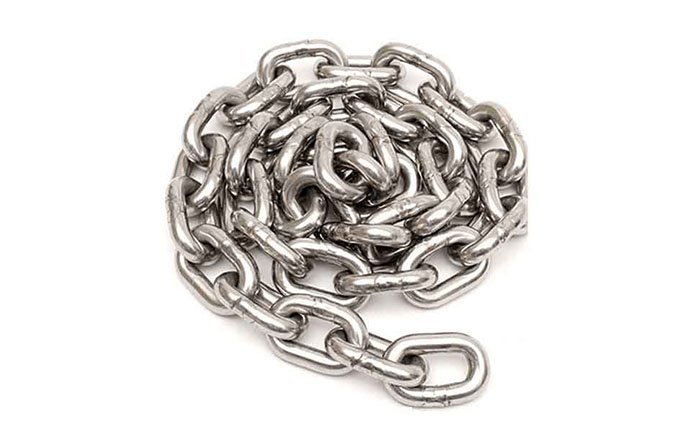

Product Description
G30 Galvanized Chain Zinc Plated Welded Iron Link Chain DIN5685c/DIN763 Long Link Chain DIN5685A/DIN766/DIN5686 Korean Standard Short Link Chain
Stainless steel Chain short Link Grade 316

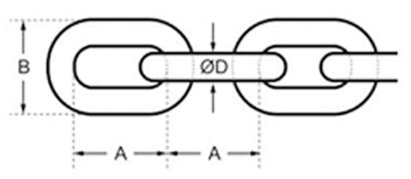

| Item No. | Link specification | Test load | Breaking Load | Net wt per 200FT | ||||
| d | P | W | kg | kg | kg | |||
| In | mm | mm | mm | B.F. | H.D.G. | |||
| HY-1/8 | 1/8 | 3.2 | 23 | 12 | 200 | 400 | 10.4 | 10.7 |
| HY-5/32 | 5/32 | 4 | 27 | 15 | 300 | 600 | 16.6 | 17.5 |
| HY-3/16 | 3/16 | 4.7 | 31 | 17 | 400 | 800 | 22.4 | 23.3 |
| HY-7/32 | 7/32 | 5.5 | 32 | 19 | 550 | 1100 | 32 | 33 |
| HY-1/4 | 1/4 | 6.35 | 33 | 21 | 750 | 1500 | 43.5 | 44.8 |
| HY-5/16 | 5/16 | 7.94 | 48 | 31 | 1200 | 2400 | 68 | 70 |
| HY-3/8 | 3/8 | 9.5 | 60 | 37 | 1700 | 3400 | 96 | 99 |
| HY-7/16 | 7/16 | 11.11 | 71 | 41 | 2300 | 4600 | 126 | 129 |
| HY-1/2 | 1/2 | 12.7 | 85 | 48.5 | 3000 | 6000 | 167 | 172 |
| HY-5/8 | 5/8 | 15.8 | 114 | 61.5 | 4700 | 9400 | 256 | 264 |
| HY-3/4 | 3/4 | 19 | 125 | 75 | 6800 | 13600 | 381 | 392 |
| HY-7/8 | 7/8 | 22.2 | 140 | 88 | 9250 | 18500 | 527 | 543 |
| HY-1 | 1 | 25.4 | 155 | 100 | 12150 | 24300 | 696 | 716 |
