Material: Alloy Steel
Usage: Heavy Duty Clamp
Structure: Vertical
Standard: Standard
Condition: New
Brand: Honyuan
Features
Standard design clamp for vertical lifting of steel plates and steel structures. The spring-loaded tightening lock mechanism assures a positive initial clamping force even at no load condition. The clamping force increases in proportion to the weight of the load. High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.

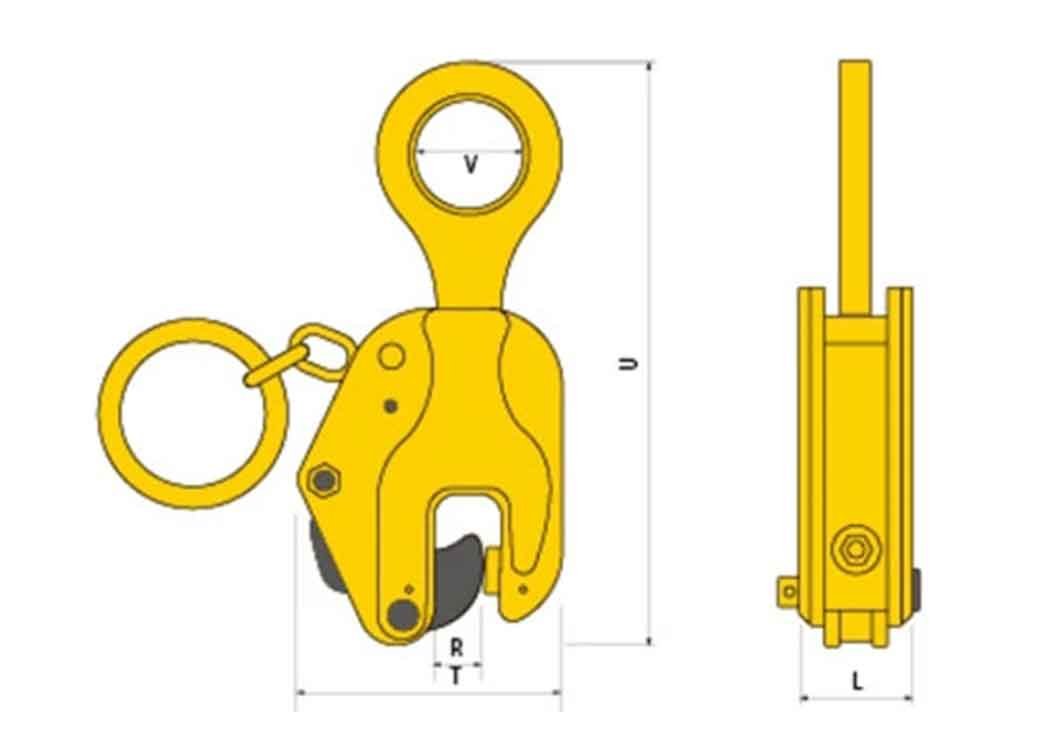

| Load Capacity (kg) | Jaw Opening (mm) | T (mm) | U (mm) | V (mm) | L (mm) | Weight (kg) |
| 500 | 0~15 | 205 | 30 | 105 | 48 | 2 |
| 1000 | 0~20 | 300 | 50 | 145 | 68 | 5 |
| 2000 | 0~25 | 385 | 68 | 175 | 75 | 8 |
| 3200 | 0~30 | 430 | 75 | 215 | 102 | 15 |
| 5000 | 0~50 | 500 | 68 | 232 | 112 | 23 |
| 8000 | 0~45 | 600 | 88 | 290 | 125 | 37 |
| 12000 | 50~90 | 700 | 90 | 420 | 128 | 50 |
| 16000 | 60~100 | 710 | 100 | 445 | 128 | 65 |
| 20000 | 0~80 | 948 | 100 | 563 | 140 | 160 |
| 30000 | 10~90 | 944 | 100 | 568 | 142 | 167 |
