Certification: RoHS, ISO, CE
Color: White
Surface Treatment: Galvanised
Usage: Electrical Appliance, Machinery
Material: Aluminum Alloy
Type: C Type
●

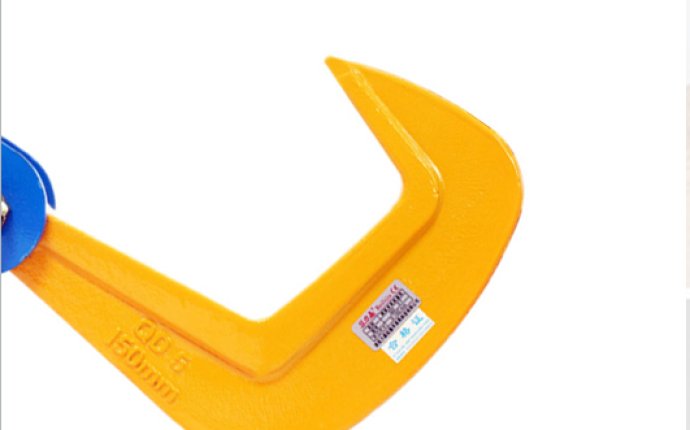

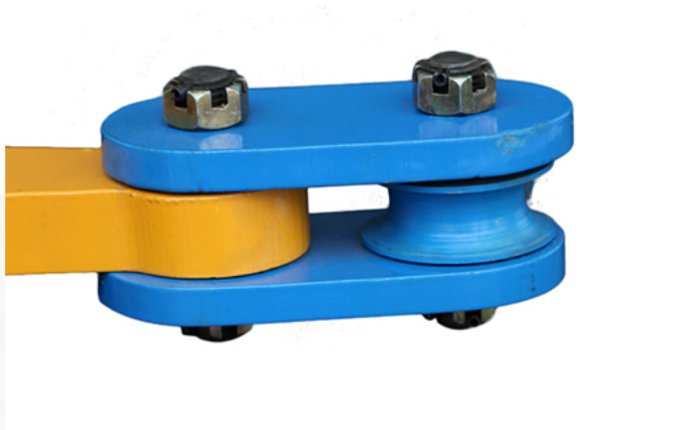

strictly use raw materials for production, refuse to cut corners
●

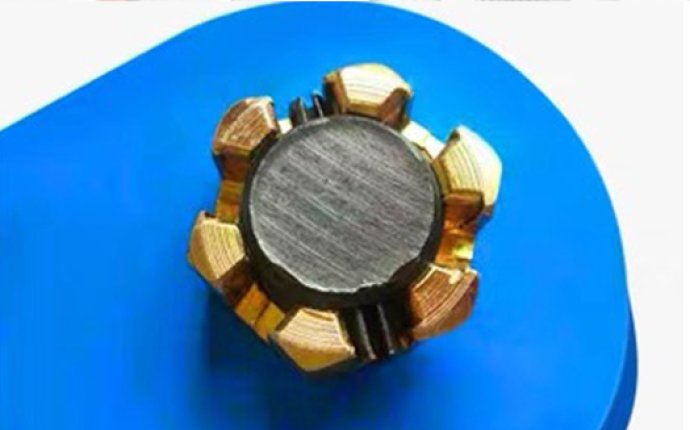

mature technology mature technology
●

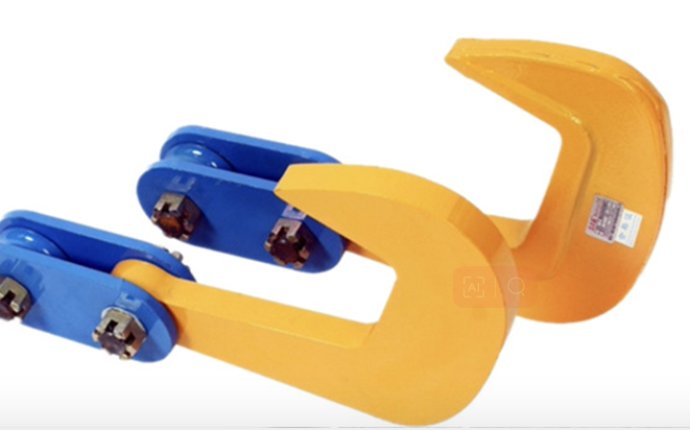

strictly control each procedure and strictlytest the products support customization
●
factory processing and manufacturing can be customizedaccording to your reasonable needs
* Suitable for lifting and transport of steel plates and construction and profiled bar in horizontal position.
* Manufactured from high quality carbon steel.
* Avoid snatch or shock loading.
*The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60° .
In lifting operations the clamps can be used in pairs or multiples.
*The main body and parts are made from die-forge special alloy steels, which are optimally tempered for maximum strength and durbility.
Single Steel Plate Lifting Clamps
| Part No. | Model | WLL (t) | Jaw Opening (mm) | Weight (kg) |
| HY-001 | L0.8 | 0.8 | 0-15 | 2 |
| HY-002 | L1 | 1 | 0-20 | 4 |
| HY-003 | L1.6 | 1.6 | 0-25 | 6.5 |
| HY-004 | L2.5 | 2.5 | 0-30 | 11 |
| HY-005 | L2.5(B) | 2.5 | 25-50 | 11 |
| HY-006 | L3.2 | 3.2 | 0-40 | 12.5 |
| HY-007 | L3.2(B) | 3.2 | 30-60 | 12.5 |
| HY-008 | L5 | 5 | 0-50 | 19 |
| HY-009 | L5(B) | 5 | 50-80 | 20 |
| HY-010 | L10 | 10 | 20-100 | 43 |
Lifting Clamp, Horizontal Plate Clamp (LA Series):
| Part No. | Model | WLL (t) | Jaw Opening (mm) | Weight (kg) |
| HY-011 | LA1 | 1 | 0-30 | 4 |
| HY-012 | LA2 | 2 | 0-50 | 5.5 |
| HY-013 | LA3.2 | 3.2 | 0-50 | 8 |
| HY-014 | LA5 | 5 | 0-60 | 11.5 |
| HY-015 | LA6 | 6 | 20-80 | 14.5 |
| HY-016 | LA10 | 10 | 35-120 | 30 |
