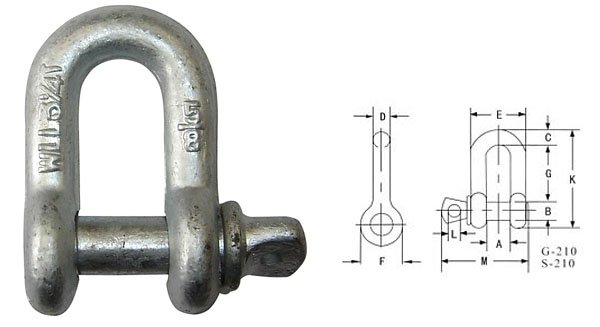

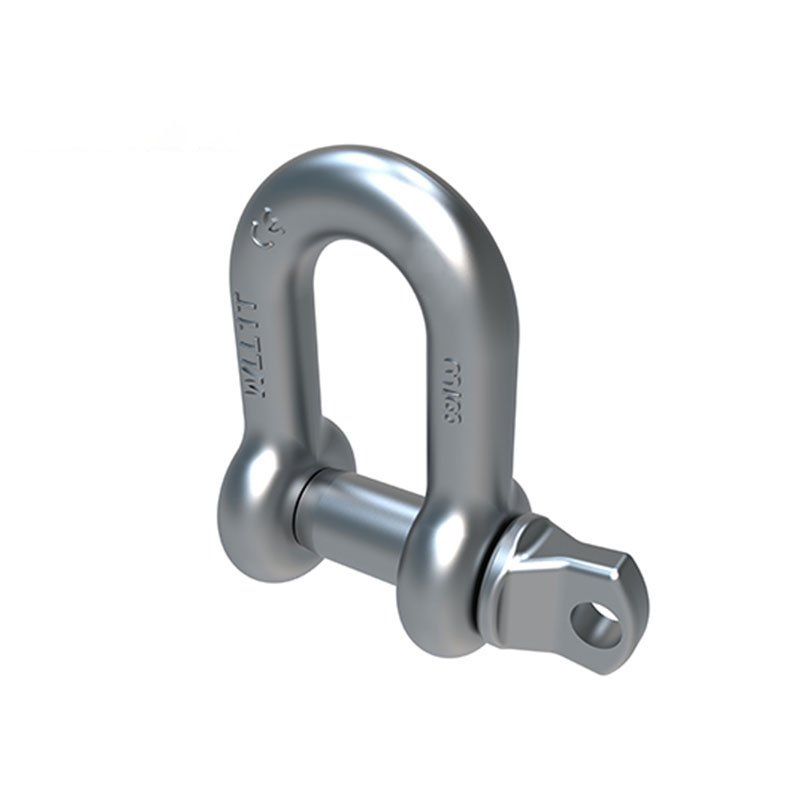

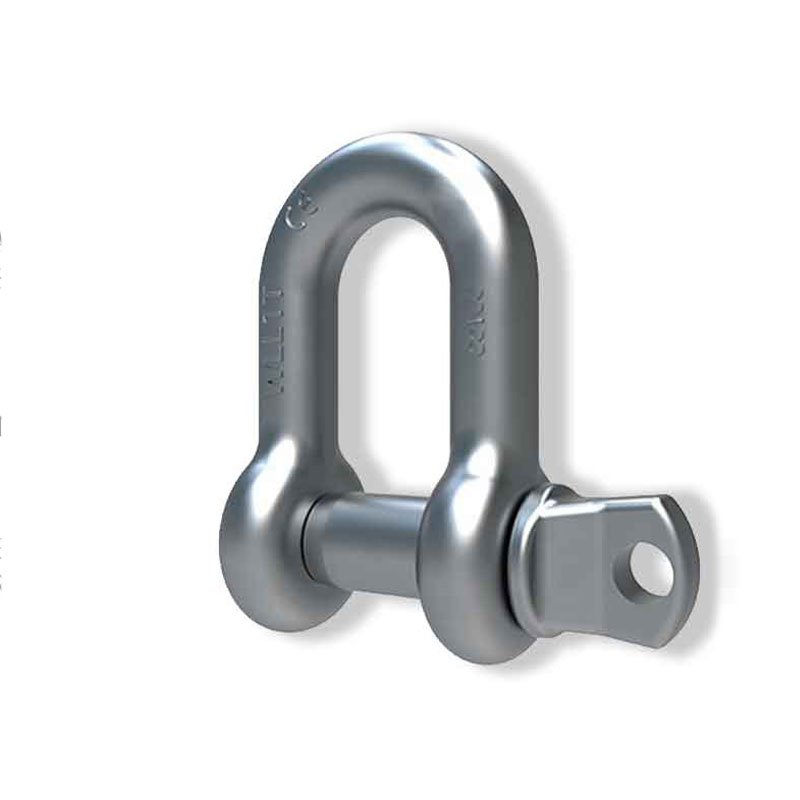

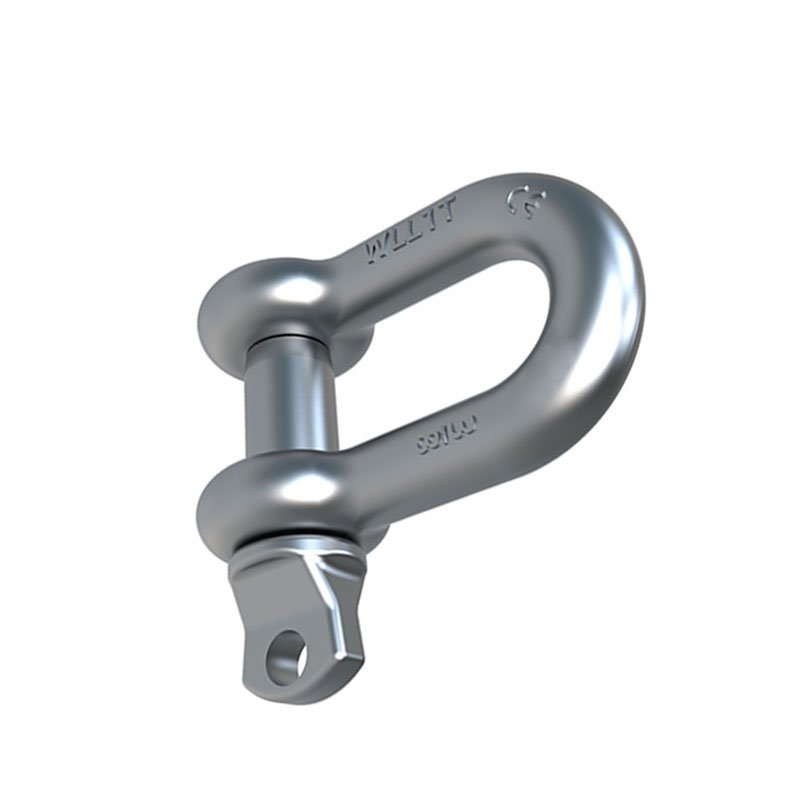

U.S.Screw Pin Chain Shackles
Product code | Wight each(kg) | Nominal Size(in) | WWL(t) | Dimensions(mm) | ||||||||||
210 | 210 | A | B | C | D | E | F | G | H | L | M | P | ||
HYR01-S1001 | - | 3／16 | 1／3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 4.06 | 28.4 | 4.85 |
HYR01-S1002 | 0.05 | 1／4 | 1／2 | 11.90 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 |
HYR01-S1003 | 0.08 | 5／l6 | 3／4 | 13.50 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 37.3 | 53.0 | 5.60 | 42.2 | 7.85 |
HYR01-S1004 | 0.13 | 3／8 | 1 | 16.80 | 11.20 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63.0 | 6.35 | 51.5 | 9.65 |
HYR01-S1005 | 0.20 | 7／16 | 1-1／2 | 19.10 | 12.70 | 42．9 | 11．20 | 29.5 | 26.9 | 51.5 | 74.0 | 7.85 | 60.5 | 11.20 |
HYR01-S1006 | 0.27 | 1／2 | 2 | 20.60 | 16.00 | 47.8 | 12.70 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.70 |
HYR01-S1007 | 0.57 | 5／8 | 3-l／4 | 26.90 | 19.10 | 60.5 | 16.00 | 42.9 | 38.1 | 74.5 | 106.0 | 11.20 | 85.0 | 17.50 |
HYR01-S1008 | 1.20 | 3／4 | 4-3／4 | 31.80 | 22.40 | 71.5 | 19.10 | 51.0 | 46.0 | 89.0 | 126.0 | 12.70 | 101.0 | 20.60 |
HYR01-S1009 | 1.43 | 7／8 | 6-1／2 | 36.60 | 25.40 | 84.0 | 22.40 | 58.0 | 53.0 | 102.0 | 148.0 | 12.70 | 114.0 | 24.60 |
HYR01-S1010 | 2.1 5 | 1 | 8-l／2 | 42.90 | 28.70 | 95.5 | 25.40 | 68.5 | 60.5 | 119.0 | 167.0 | 14.20 | 129.0 | 26.90 |
HYR01-S1011 | 3.06 | 1-1/8 | 9-l／2 | 46.00 | 31.80 | 108.0 | 29.50 | 74.0 | 68.5 | 131.0 | 190.0 | 16.00 | 142.0 | 31.80 |
HYR01-S1012 | 4.11 | 1—1／4 | 12 | 51.50 | 35.10 | 119.0 | 32.80 | 82.5 | 76.0 | 146.0 | 210.0 | 17.50 | 1 56.0 | 35.10 |
HYR01-S1013 | 5.28 | 1—3／8 | 13-1／2 | 57.O0 | 38.10 | 133.0 | 36.1 0 | 92.0 | 84.O | 162.0 | 233.0 | 19.10 | 174.0 | 38.10 |
HYR01-S1014 | 7.23 | 1一l／2 | 17 | 60.50 | 41.40 | 146.0 | 39.10 | 98.5 | 92.0 | 175.0 | 254.0 | 20.60 | 187.0 | 41.10 |
HYR01-S1015 | 12.10 | 1—3／4 | 25 | 73.00 | 51.00 | 178.0 | 46.70 | 127.0 | 106.0 | 225.0 | 313.0 | 25 40 | 231.0 | 57.00 |
HYR01-S1016 | 19.20 | 2 | 35 | 82.50 | 57.00 | 197.0 | 53.OO | 146.0 | 122.0 | 253.0 | 348.0 | 31.00 | 263.0 | 61.00 |
HYR01-S1017 | 32.50 | 2．1／2 | 55 | 105.00 | 70.00 | 267.0 | 69.00 | 184.0 | 145.0 | 327.0 | 453.0 | 35.10 | 330.0 | 79.50 |
