Usage: Transmission Chain, Drag Chain, Conveyor Chain, Dedicated Special Chain
Material: Stainless steel
Surface Treatment: Polishing
Feature: Heat Resistant
Chain Size:2mm-28mm
Structure: Welded Chain
●
Material: Q235 weldable low carbon manganese steel
●
Automatic Production Line Operateswith high production efficiency and fast delivery
●

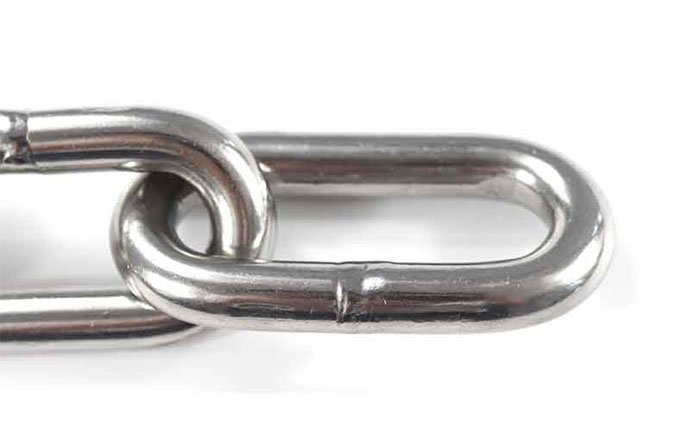

The surface is smooth without burrfirm and durable
Product Description
1. Surface treatment is electric galvanized.
2. usage is for security, showing,traffice chain.
3. Certificate: ISO9000, SGS etc.
4. type: Grade 30 not overhead lifting product.

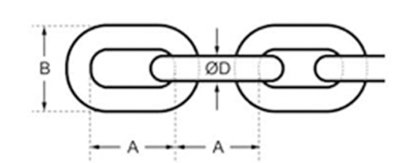

| Dia (mm) | Inside Length (mm) | Outside Width (mm) | WLL (kg) | BL (N) | Weight (kg/m) |
| 2 | 22 | 8 | 25 | 1250 | 0.06 |
| 2.5 | 24 | 10 | 40 | 2000 | 0.10 |
| 3 | 26 | 12 | 55 | 3200 | 0.15 |
| 3.5 | 28 | 14 | 80 | 3850 | 0.20 |
| 4 | 32 | 16 | 100 | 6000 | 0.27 |
| 4.5 | 34 | 18 | 128 | 6300 | 0.35 |
| 5 | 35 | 20 | 160 | 10000 | 0.43 |
| 5.5 | 38.5 | 22 | 195 | 9500 | 0.52 |
| 6 | 42 | 24 | 224 | 14000 | 0.63 |
| 7 | 49 | 28 | 300 | 18000 | 0.86 |
| 8 | 52 | 32 | 400 | 25000 | 1.10 |
| 8.5 | 56 | 34 | 460 | 22500 | 1.25 |
| 9 | 59 | 36 | 530 | 32000 | 1.41 |
| 10 | 65 | 40 | 630 | 40000 | 1.75 |
| 11 | 72 | 44 | 790 | 47500 | 2.11 |
| 12 | 78 | 48 | 940 | 56500 | 2.55 |
| 13 | 82 | 52 | 1000 | 63000 | 2.95 |
| 16 | 100 | 64 | 1600 | 100000 | 4.45 |
| 18 | 113 | 70 | 2120 | 127000 | 5.65 |
| 19 | 119 | 72 | 2370 | 142000 | 6.25 |
| 20 | 120 | 75 | 2500 | 160000 | 7.00 |
