Usage: Dedicated Special Chain, Pet Tie out
Material: Iron
Surface Treatment: Electroplating
Feature: Heat Resistant
Chain Size: 2mm-32mm
Structure: Weldless
●
Material: Q235 weldable low carbon manganese steel
●
Automatic Production Line Operateswith high production efficiency and fast delivery
●
The surface is smooth without burrfirm and durable
Product Description
1. Surface treatment is electric galvanized.
2. usage is for security, showing,traffice chain.
3. Certificate: ISO9000, SGS etc.
4. type: Grade 30 not overhead lifting product.

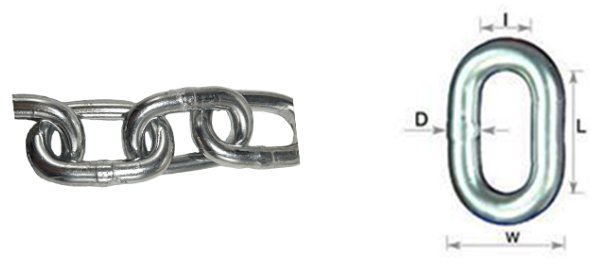

Short Link Chain Din 5685 A
| DIA. | INNER LENGTH | OUTER WIDTH | LENGTH | WORK LOAD | TYPE | PACKAGE |
| 2 mm | 12 mm | 8 mm | 60 m | 40 kg | Galvanized | Reel |
| 3 mm | 16 mm | 12 mm | 30 m | 90 kg | Galvanized | Reel |
| 4 mm | 19 mm | 16 mm | 25 m | 165 kg | Galvanized | Reel |
| 5 mm | 21 mm | 20 mm | 25 m | 255 kg | Galvanized | Reel |
| 6 mm | 24 mm | 24 mm | 25 m | 365 kg | Galvanized | Reel |
| 7 mm | 28 mm | 28 mm | 20 m | 500 kg | Galvanized | Reel |
| 8 mm | 32 mm | 32 mm | 20 m | 655 kg | Galvanized | Reel |
| 10 mm | 40 mm | 40 mm | 15 m | 1025 kg | Galvanized | Reel |
