Super Slim Single Hydraulic Cylinder

Product Properties

Certification: GS, RoHS, CE, ISO9001

Pressure: Medium Pressure

Working temperature: normal temperature

Acting mode: double acting

Working Method: Straight Travel

Fitted Way: Switch Type


Product Description

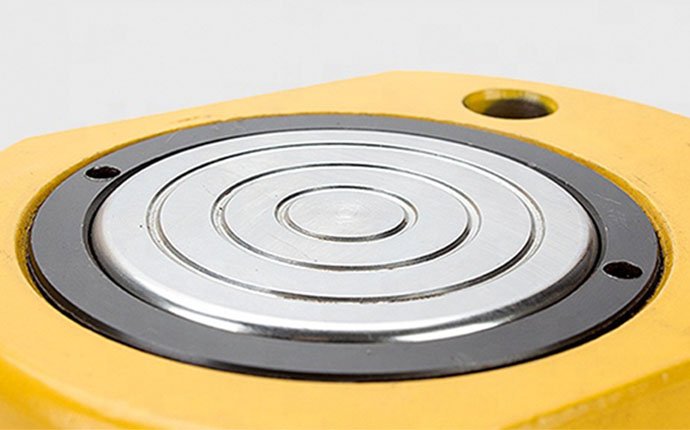

  • Flat surface
    Flat surface

    Transparent circle mark, firmly affixed, so as not to burst the cylinder.

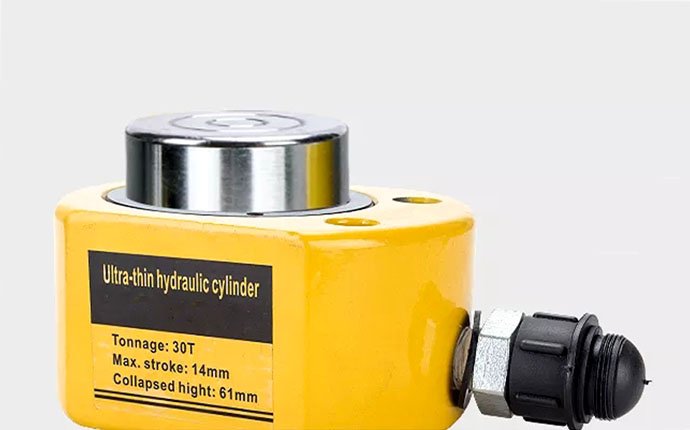

  • _0000_c4bf0c5743e858973a751ade2f245b5 拷贝
    _0000_c4bf0c5743e858973a751ade2f245b5 拷贝

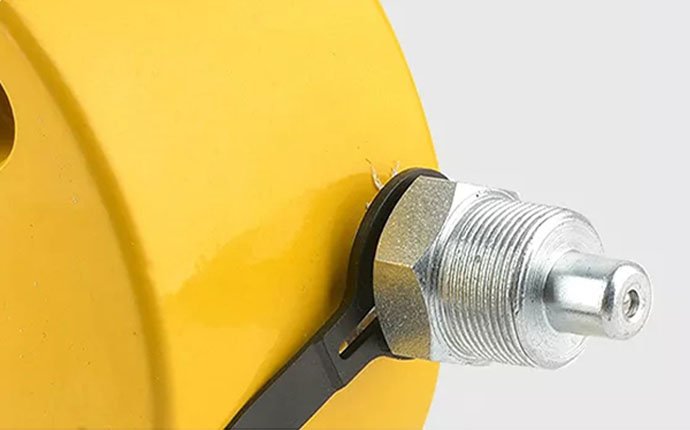

  • Work jack without cylinder stuck
    Work jack without cylinder stuck

    Work Lift, Non-Seize Cylinder, Full Tonnage, Full Stroke


advantages:

1. Light weight, easy to carry.

2. Baked enamel finish for added corrosion resistance.

3. All raw materials have special heat treatment and are processed by imported CNC lathes.

4. High-quality imported seals to provide better protection for the cylinder, making the cylinder not easy to wear.


Features and functions:


1. Double effect. hydraulic return

2. Baked enamel finish for added corrosion resistance.

3. The built-in safety valve prevents accidental overpressure.

4. Be equipped with double circuit pump to work.

5. The RR cylinder is the best solution for controlled heavy loads in facilities.

6. Replacement of adjusting rollers under a flyover with RR cylinders, for controlled raising and lowering operation.


Iterm NoOutputSelf-HeightWork TravelCylinder Bore DiaOutside DiaWeight
HY-515T41mm7mm35mm64*48mm0.7kg
HY-10110T47mm11mm45mm83*62mm1.6kg
HY-20120T55mm13mm60mm102*80mm2.7kg
HY-30130T61mm14mm75mm125*105mm5.0kg
HY-50150T71mm18mm95mm155*130mm8.5kg
HY-1001100T90mm21mm135mm206*175mm19.25kg
HY-1501150T88mm21mm170mm207mm23.0kg
