Construction: Double Braided
Material: Polyester
Color: White, White with color tracers, Black, or Customized
Transport Package: Hank /Coil/Reel
●

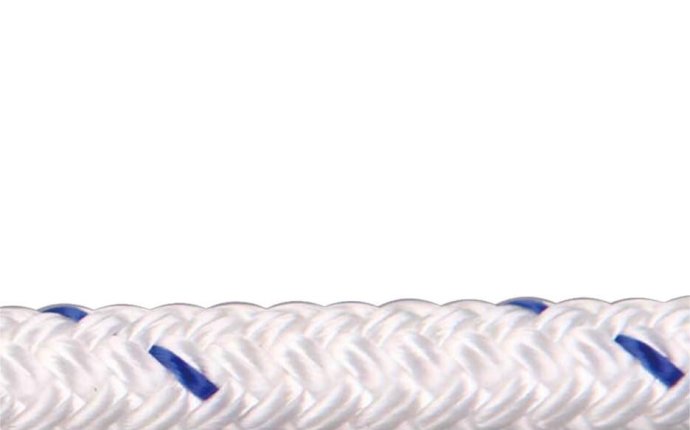

Braid on braid construction made of 100% HT polyester provides an excellent combination of high strength and low elongation.
●

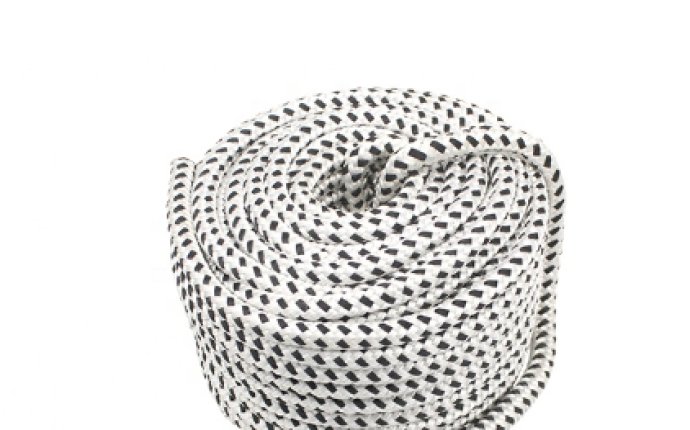

Polyester is a strong and UV resistant synthetic fiber. Has great weathering characteristics and wet abrasion resistance. Easy to splice. Sinks in water.
●
High strength Less stretch Cost effective Flexible Spliceable Highly resistant to rot and deterioration

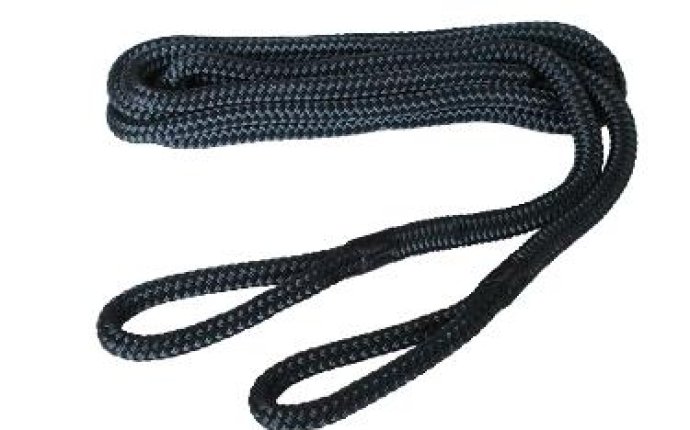

Polyester Double Braid
| Diameter (inch) | Linear Density (lbs/100ft) | Working Strength (lbs) | Breaking Strength (lbs) | Strands |
| 1/4 | 2 | 323 | 1935 | 16 |
| 5/16 | 3.1 | 496 | 2975 | 16 |
| 3/8 | 4.5 | 713 | 4275 | 16 |
| 7/16 | 6.1 | 954 | 5725 | 16 |
| 1/2 | 8 | 1238 | 7425 | 16 |
| 9/16 | 10.1 | 1538 | 9225 | 16 |
| 5/8 | 12.5 | 1875 | 11250 | 16 |
| 3/4 | 17.9 | 2667 | 16000 | 24 |
| 7/8 | 24.4 | 3600 | 21600 | 24 |
| 1 | 31.9 | 4683 | 28100 | 24 |
| 1-1/8 | 40.4 | 5925 | 35550 | 24 |
| 1-1/4 | 49.8 | 7292 | 43750 | 24 |
| 1-1/2 | 71.8 | 10350 | 62100 | 24 |
| 2 | 128 | 17925 | 107550 | 24 |
| 2-1/4 | 161 | 22050 | 132300 | 24 |
| 2-1/2 | 199 | 26850 | 161100 | 24 |
| 3 | 287 | 37950 | 227700 | 24 |
