Material Properties : Polyester
Melting point : 265℃
Specific gravity : 1.38
Elongation at breaking :15~30%
●
UV resistance Easy splicing Good abrasion resistance Bespoke diameter and length is available
●
8-strand plaited construction, torque-free, excellent strength,superior wear resistance,it's natural water absorption makes the rope great handling and perform very well in wet working conditon.
●
Applications:Mooring line. H-Bitt working line. Lifting sling. Shock line

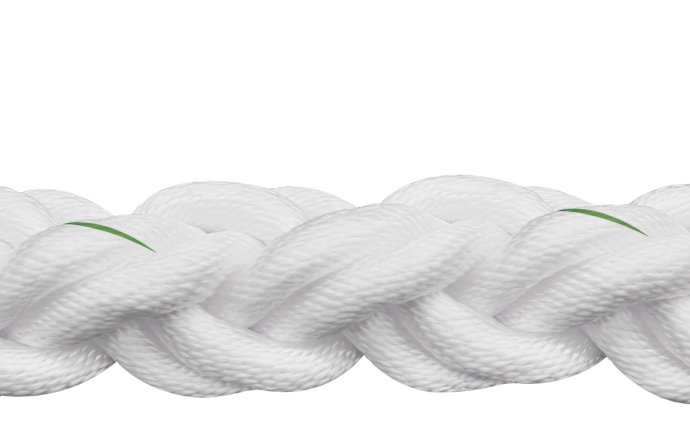

Polyester 8 Strands Mooring Rope
| Item Number | Size (mm) | Size (inch) | Circ. (inch) | Weight (kgs/100m) | Weight (lb/100ft) | Break Load (kgs) | Break Load (lbs) |
| 6144111 | 18 | 3/4 | 2-1/4 | 27 | 18.13 | 7100 | 15600 |
| 6144131 | 22 | 7/8 | 2-3/4 | 39 | 26.18 | 10450 | 23000 |
| 6144141 | 24 | 1 | 3 | 50 | 33.57 | 12350 | 27200 |
| 6144161 | 28 | 1-1/8 | 3-1/2 | 59 | 39.61 | 15960 | 35200 |
| 6144171 | 30 | 1-1/4 | 3-3/4 | 65 | 43.64 | 16600 | 36600 |
| 6144181 | 32 | 1-5/16 | 4 | 77 | 51.7 | 21500 | 47000 |
| 6144201 | 36 | 1-1/2 | 4-1/2 | 104 | 69.82 | 26200 | 57700 |
| 6144221 | 40 | 1-5/8 | 5 | 118 | 79.22 | 31350 | 69000 |
| 6144241 | 44 | 1-3/4 | 5-1/2 | 146 | 98.02 | 36100 | 79500 |
| 6144261 | 48 | 2 | 6 | 175 | 117.49 | 45100 | 99300 |
| 6144281 | 52 | 2-1/8 | 6-1/2 | 206 | 138.3 | 51300 | 113000 |
| 6144291 | 56 | 2-1/4 | 7 | 235 | 157.77 | 58900 | 129800 |
| 6144301 | 60 | 2-1/2 | 7-1/2 | 276 | 185.3 | 69350 | 152800 |
| 6144331 | 64 | 2-5/8 | 8 | 307 | 206.11 | 76950 | 169500 |
| 6144341 | 68 | 2-3/4 | 8-1/2 | 348 | 233.64 | 101000 | 222500 |
| 6144361 | 72 | 3 | 9 | 402 | 269.89 | 96900 | 213400 |
| 6144391 | 80 | 3-1/4 | 10 | 496 | 333 | 121000 | 266500 |
| 6144421 | 88 | 3-5/8 | 11 | 593 | 398.12 | 148200 | 326400 |
| 6144451 | 96 | 4 | 12 | 704 | 472.64 | 174000 | 383000 |
| 6144471 | 104 | 4-1/4 | 13 | 824 | 553.21 | 208000 | 458000 |
| 6144491 | 112 | 4-5/8 | 14 | 958 | 643.17 | 233000 | 513200 |
| 6144511 | 120 | 5 | 15 | 1126 | 755.96 | 267000 | 588100 |
