Usage: Dedicated Special Chain, Lifting Chain
Material: Iron
Surface Treatment: Electroplating
Feature: Heat Resistant
Chain Size: 2mm-32mm
Structure: Welded
●
Automatic Production Line Operates,with high production efficiency and fast delivery.
●
Our factory is powerful with abundant product supply andwide range of product customizations, welcome to orderand inquiry.
●
The surface is smooth without burr,firm and durable
Product Description
1. Surface treatment is electric galvanized.
2. usage is for security, showing,traffice chain.
3. Certificate: ISO9000, SGS etc.
4. type: Pet tie out

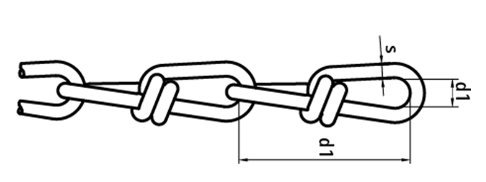

| NO. | SIZE | INSIDE LENGTH | OUTSIDE WIDTH | BREAKING LOAD | WEIGHT PER 100M |
| MM | MM | MM | KG | KG | |
| 14 | 1.4 | 20 | 6.5 | 16 | 4.2 |
| 16 | 1.6 | 23 | 7 | 22 | 6 |
| 20 | 1.8 | 26.5 | 8 | 30 | 7.3 |
| 22 | 2 | 28 | 9 | 40 | 9 |
| 25 | 2.2 | 31 | 10 | 50 | 11 |
| 27 | 2.5 | 35 | 11 | 70 | 14 |
| 30 | 2.8 | 39 | 12.5 | 90 | 17 |
| 32 | 3.1 | 41 | 14 | 120 | 21 |
| 35 | 3.4 | 44 | 15.5 | 140 | 26 |
| 40 | 3.8 | 46 | 17 | 160 | 34 |
| 45 | 4.2 | 52 | 19 | 170 | 41 |
| 50 | 4.6 | 58 | 20.5 | 180 | 50 |
| 55 | 5 | 60 | 22.5 | 190 | 57 |
