HYRE-185 Hydraulic Cutting Machine

Cutter

_0004_白底主图01-01
_0000_白底主图05-01
_0001_白底主图04-01
_0002_白底主图03-01
_0003_白底主图02-01
_0004_白底主图01-01
_0000_白底主图05-01
_0001_白底主图04-01
_0002_白底主图03-01
_0003_白底主图02-01

HYRE-185 Hydraulic Cutting Machine

Product Properties


Certification: RoHS, ISO, CE

Condition: New

Automatic Grade: Manual

Use: Petroleum, Construction

Type: Hydraulic Crimping Tools

Transport package: Cartpm


Product Description

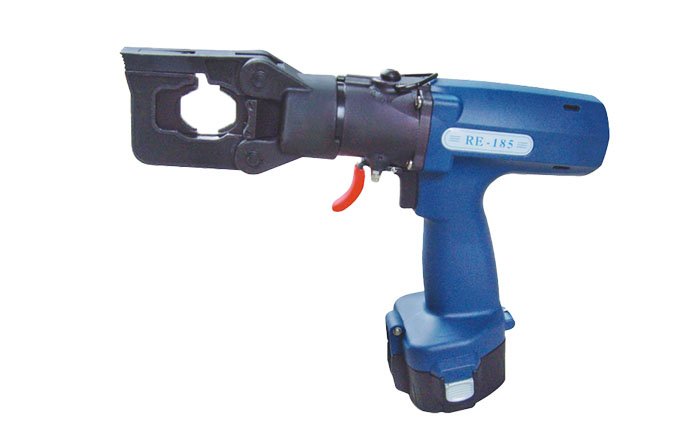

  • Cabezal de abrazadera giratorio de 350 °
    Cabezal de abrazadera giratorio de 350 °

    ●

    La cabeza puede girar libremente a 350, lo que es adecuado para varias operaciones de ángulo.

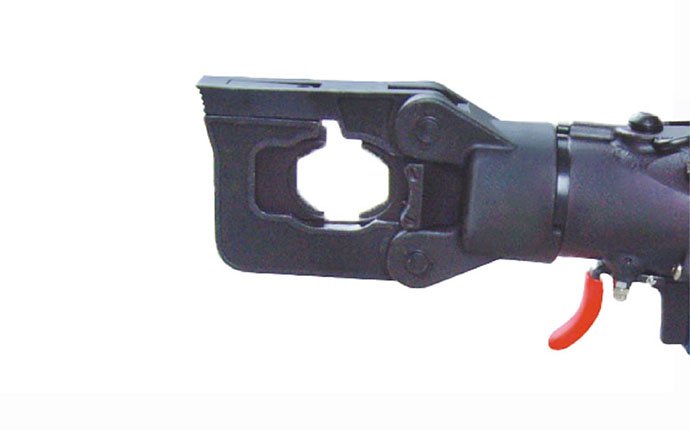

  • Hard and sharp blade.
    Hard and sharp blade.

    ●

    C-type open clamp head and the cutting surface is hard and sharp

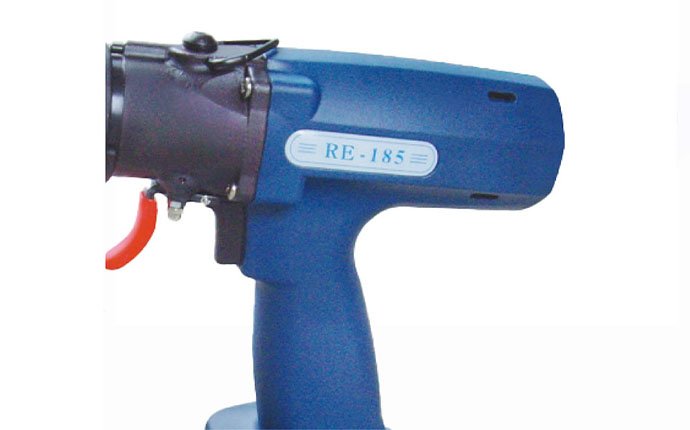

  • one key control
    one key control

    ●

    The operation is simple and convenient, one key can complete the operation.

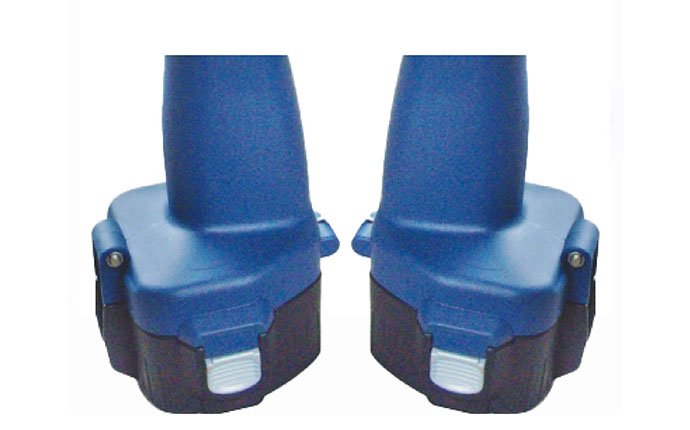

  • One Key Reset
    One Key Reset

    ●

    When there is an error in the pressing process, you can easily reset it by pressing the trigger


CHARACTERISTIC:

1. As for above ground work, work efficiency can be improved

2. The internal drive motor drives the hydraulic oil pump. It is easy to replace the batteries. The pressure head part has titanium alloy, applicable to continuous work at high height above the ground.

3. The operation can be done with one hand.

4. With compact and high wear properties, the maintenance rate of the machine is the lowest among other hydraulic tools.

5, the pressure is automatically relieved when the set pressure is reached

6. The swivel head is applicable to different workplaces.

7. Mechanical type pressure relief can guarantee the quality of the compression connection

Max Pressure(T)5.5T
Max Stroke(mm)14
Crimping Range(mm²)10-185
Standard Accessories(mm²)10,16,25,35,50,70,95,120,150,185
FormHexagon
Weight(kg)3.2
Volume(mm)390*380*130
