Certification: RoHS, ISO, CE
Condition: New
Automatic Grade: Manual
Use: Petroleum, Construction, Metallurgy
Type: Hydraulic Crimping Tools
Transport package: 1 set/wooden case
●

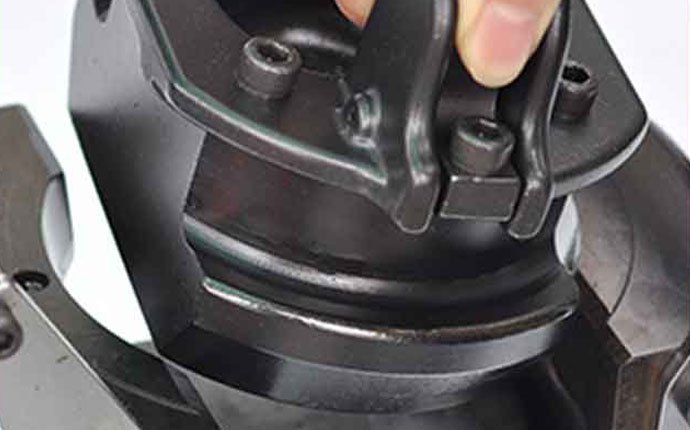

materiales cuidadosamente seleccionados
●

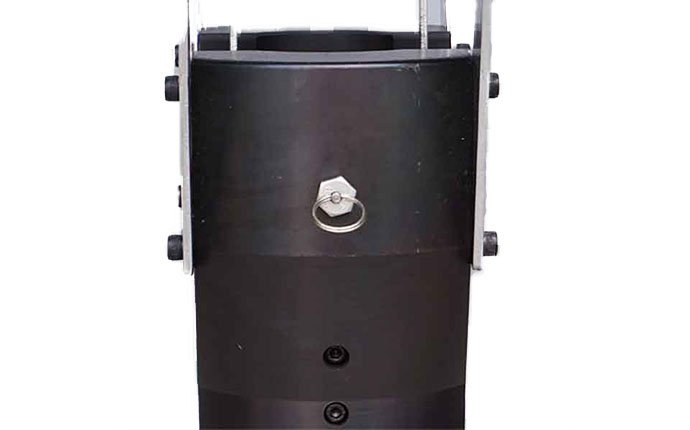

Años de experiencia en producción industrial, tecnología madura
●

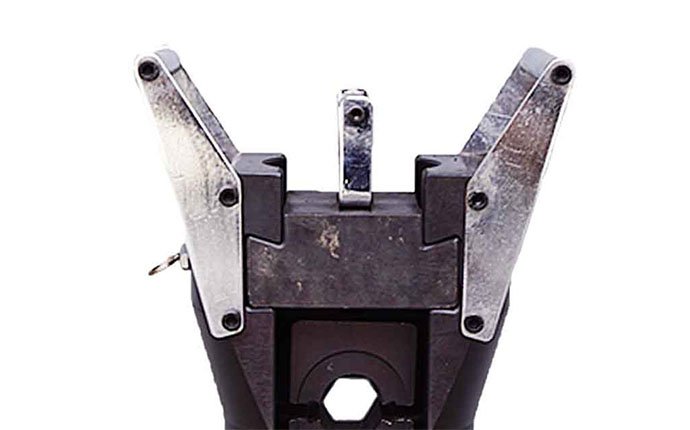

inspección de rigor
●

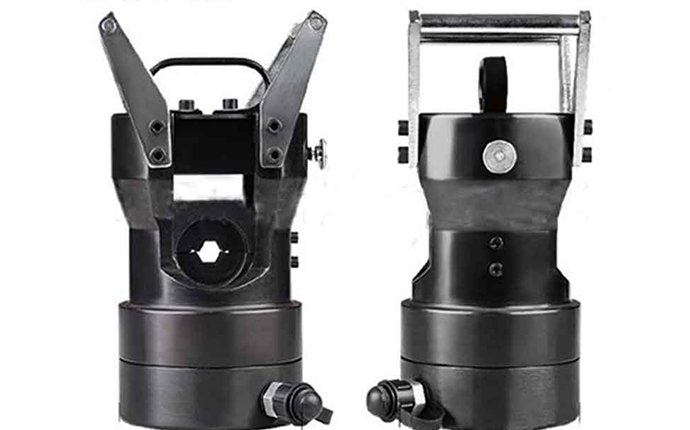

Procesamiento y fabricación en fábrica anbe personalizado de acuerdo a sus necesidades razonables
Application
Applicable to the indoor and outdoor project of the transmission and distribution room, such as professional use for all kinds of connection hardware / aerial cable,
10KV500KV high-voltage cable shell, clamp bare terminal, six-angle die-casting, tight and not easy to fall off, good electrical conductivity;
Continue development of T64 titanium alloy materials to reduce construction weight
Welcome Order Compression Mold
Characteristic
1. The compression mold can be replaced, fast and safe operation;
2. A separate structure, light weight, convenient operation;
3. Used for crimping a variety of copper and aluminum connections, terminals and wires;
4.With pump: EP-100, SR-100C2
technical data
| Product Name | |
| Output | 100T |
| Application | Hydraulic Powered Pump Crimping Head |
| Crimping Capacity | 16~71mm |
| Standard Dies | 1 sets |
| Crimping Profile | Hexagon |
| Length | 370mm |
| Single Acting | An external hydraulic pump is required |
| Weight | 38 kgs |
| Tools introduction | CO-100S is a double-acting heavy-duty hydraulic tool, designed with detachable cap, two carrying handles, two quick couplers. After properly connected with an double-acting hydraulic pump (electric or gasoline type), CO-100S is capable of crimping Cu or Al Cable lugs, connectors onto cable up to Dia.equipped |
| Features | 1) Remote control style for easy carrying to working place. 2) With quick coupler , these crimping tools can be easily connected with external pump. 3) Double acting design for quick ram retraction retract ram by hydraulic power is much quicker than spring or load. 4) Detachable die cap for easy dies installation and removal. 5) Wood carton or metal case package for well tool protection during delivery. |
