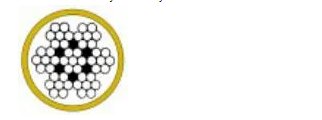

Strands: 7
Wires Per Strand: 7
Core: WSC
Standard Grade: GB, EN, DIN, ASTM
Lay: Regular
Finish: TPU Nylon Vinyl coated

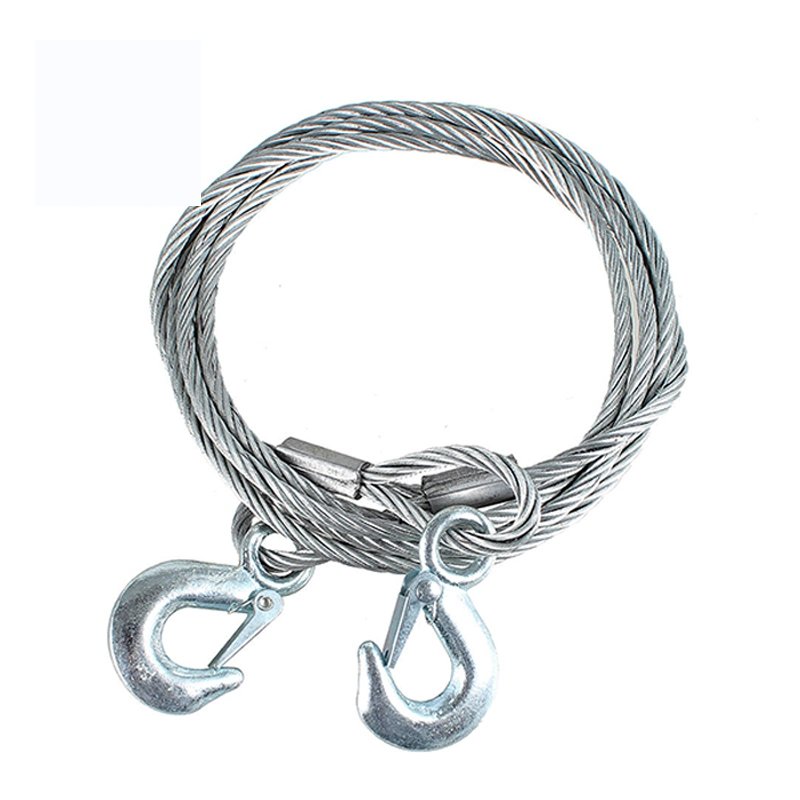

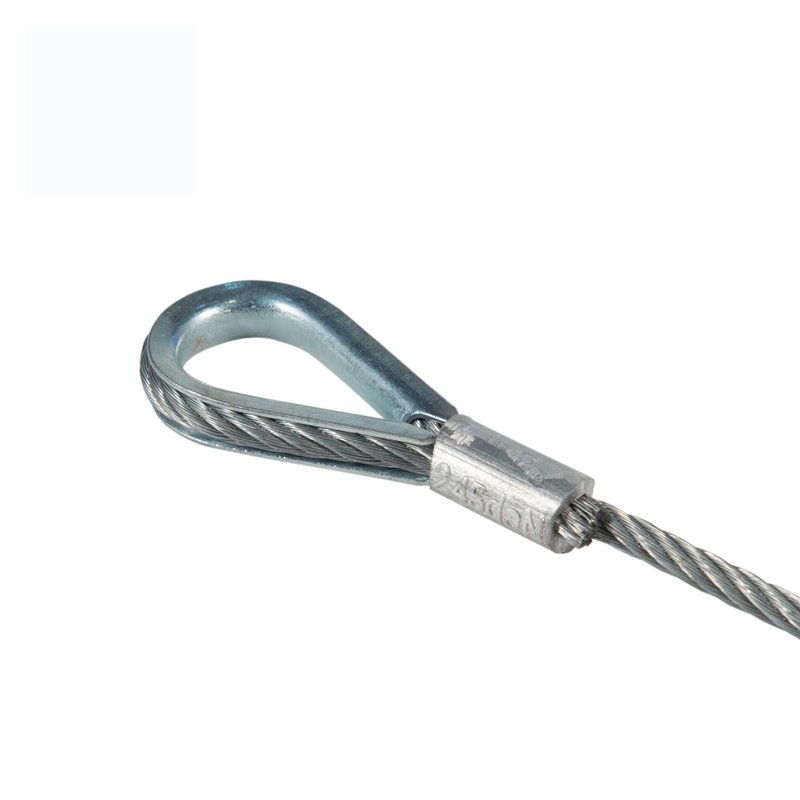

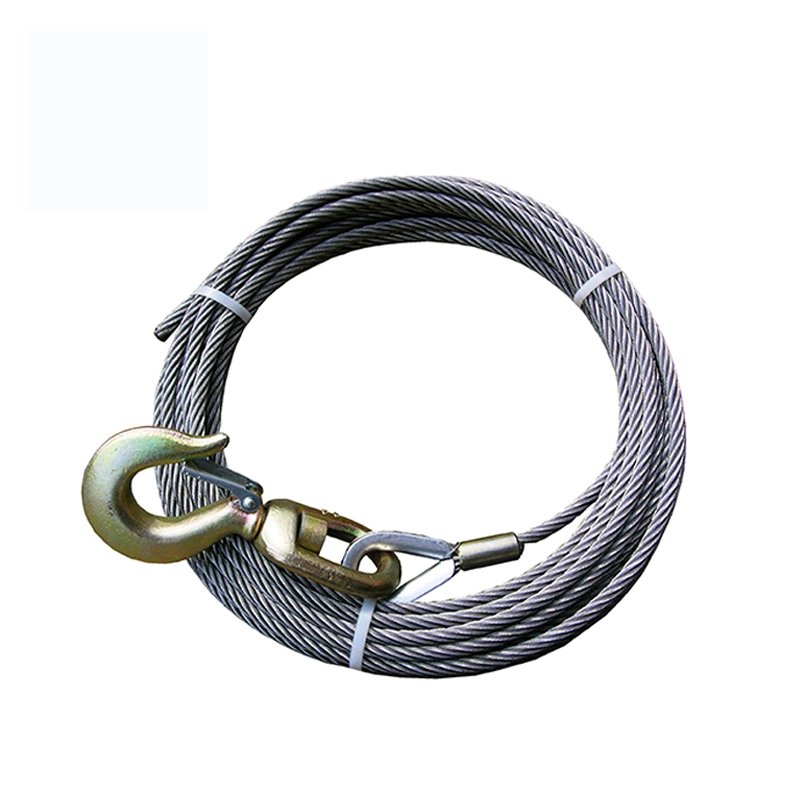

Galvanized Pressed Steel Wire Rope Sling
| Diameter | Reference Weight | Nominal Tensile Srength/Mpa | ||||||||||
| (kg/100meter) | 1570 | 1670 | 1770 | 1870 | ||||||||
| Minimum breaking lforce (KN) | ||||||||||||
| NFC | DFC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC | ||
| 1.8 | 1.14 | 1. 11 | 1.25 | 1. 69 | 1. 83 | 1.8 | 1. 94 | 1.9 | 2.06 | 2.01 | 2.18 | |
| 2 | 1.4 | 1.38 | 1. 55 | 2.08 | 2. 25 | 2.22 | 2.4 | 2.35 | 2.54 | 2.48 | 2.69 | |
| 3 | 3. 16 | 3.1 | 3. 48 | 4. 69 | 5.07 | 4. 99 | 5.4 | 5.29 | 5.72 | 5.59 | 6.04 | |
| 4 | 5. 62 | 5.5 | 6. 19 | 8.34 | 9.02 | 8.87 | 9. 59 | 9.4 | 10.2 | 9.93 | 10. 7 | |
| 5 | 8.78 | 8.6 | 9.68 | 13 | 14. 1 | 13. 9 | 15. 0 | 14.7 | 15.9 | 15.5 | 16.8 | |
| 6 | 12. 6 | 12.4 | 13.9 | 18.8 | 20.3 | 20. 0 | 21. 6 | 21. 2 | 22.9 | 22. 4 | 24.2 | |
| 7 | 17. 2 | 16.9 | 19. 0 | 25. 5 | 27. 6 | 27. 2 | 29. 4 | 28.8 | 31.1 | 30. 4 | 32.9 | |
| 8 | 22. 5 | 22 | 24. 8 | 33.4 | 36. 1 | 35. 5 | 38. 4 | 37. 6 | 40.7 | 39. 7 | 43 | |
| 9 | 28. 4 | 27.9 | 31.3 | 42.2 | 45. 7 | 44. 9 | 48. 6 | 47. 6 | 51. 5 | 50. 3 | 54. 4 | |
| 10 | 35. 1 | 34.4 | 38.7 | 52.1 | 56.4 | 55.4 | 60 | 58.8 | 63. 5 | 62. 1 | 67. 1 | |
