Alloy steel
Using superior grade rawmaterial marine gradealloy steel
Painted
Precision cast,painted finish weather resistant high stability and strength
All specificationsin stock
Fast connect and disconnectwidely used in outdoor&indoorall specificationsin stock，
large quantity available

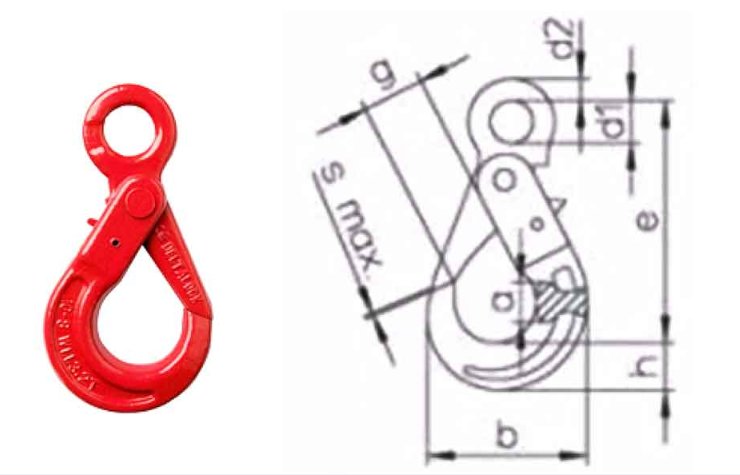

G80 U.S. type Eye Self-Locking Safety Hook
Product code | Size | Lbs/pc | WLL/T | B.L/Lb |
HYR02-H0601 | 1/4” | 0.85 | 2500 | 10000 |
HYR02-H0602 | 3/8” | 1.81 | 4500 | 18000 |
HYR02-H0603 | 1/2” | 3.24 | 7100 | 28400 |
HYR02-H0604 | 5/8” | 5.96 | 12000 | 48000 |
HYR02-H0605 | 3/4” | 12.75 | 18100 | 72400 |

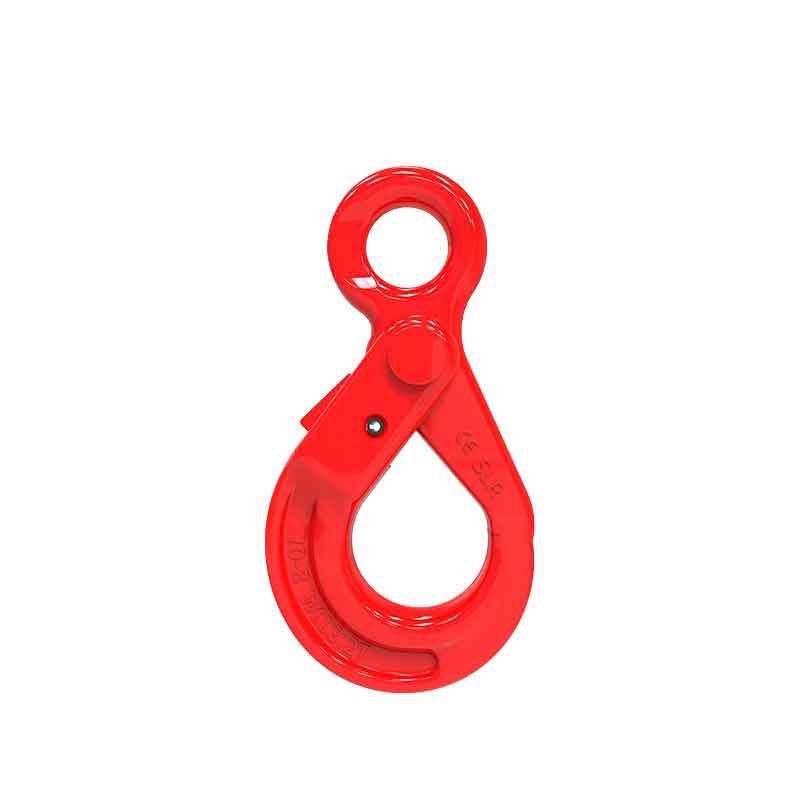

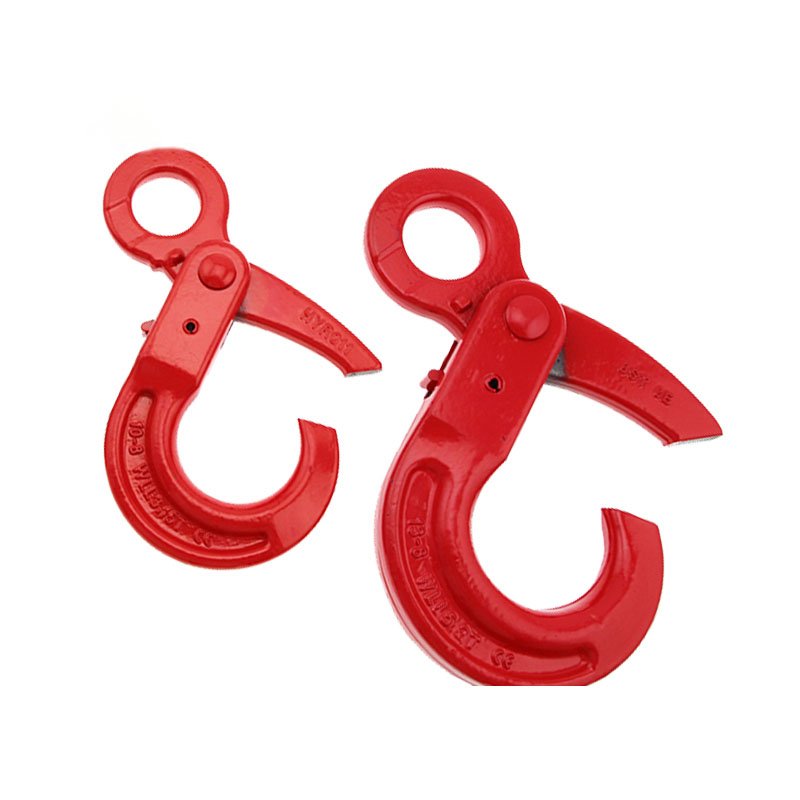

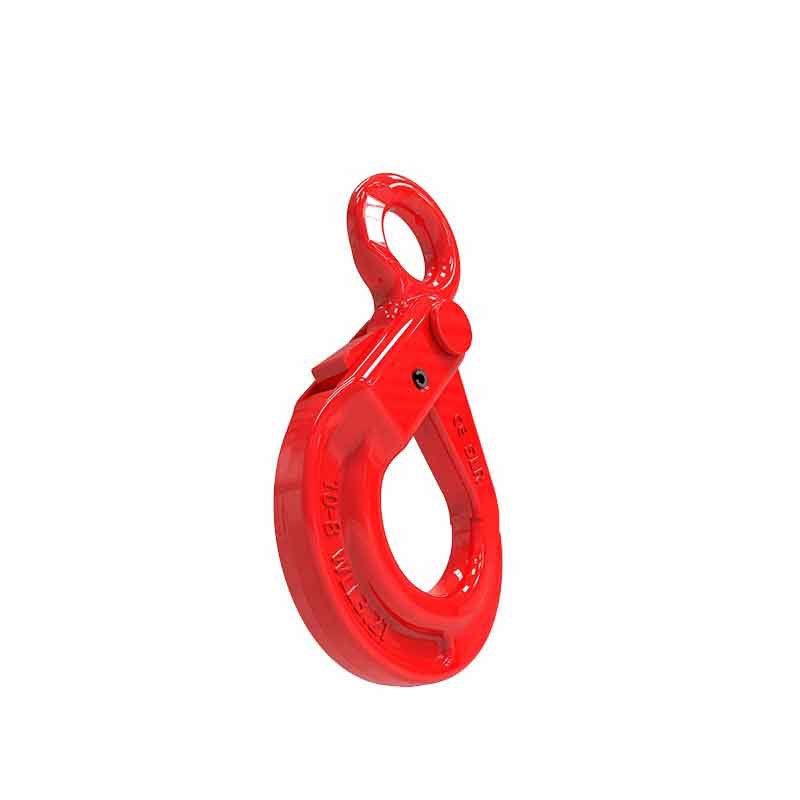

Detailed Photos
We can supply products as per customer's requipments. If you have any interest in our products.
A 327 Eye Sling Hook Forged super alloy steel-Quenched and Tempered.
Individually proof test at 2.5times working load limit.
Fatiuge teated at 1.5times working load limit for 20000 cycles.
Breakage test. 100%mangaflux crack detecation.
All load pains are 100% individually inspected and tested.
Surface finish: Powder plastified
Colour code: , Red, Blue, Black, etc
Ultimate load is 4 times the working load limit.
Customized requirements are welcome!
