Complete specifications
Overall use of high quality material.Than ordinary materiai hardness,moisture resistancenot easy to rust
Smooth surface without burrs
Smooth surface without burr,uniform force.Stable structure,aging resistance,long service life
Simple structure easy to use
Adopt professional testing equipment to strictly test the size and quality of products,so as to ensure the standard of products
Quality manufacturer
Can be customized according to customer requirementsa variety of specifications.Can be customized to draw samples.We will provide you with a reference solution

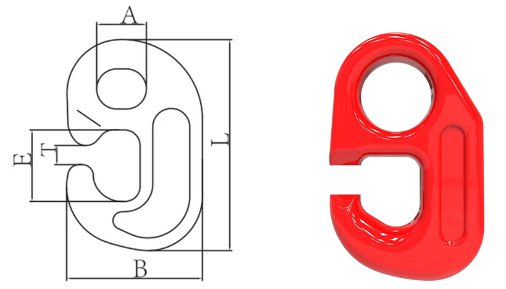

| ITEM NO. | WEIGHT(Kg) | WLL(T) | B.L(T) | A±1 | B±1.5 | E±1 | T±0.5 | L±2 | |||||||||||||
| 3T | 0.69 | 3 | 15 | 28.5 | 72.5 | 41.5 | 18 | 119 | |||||||||||||
| 5T | 0.13 | 5 | 25 | 35 | 83.5 | 44 | 18 | 136.5 | |||||||||||||
| 8T | 2.1 | 8 | 40 | 42 | 90.5 | 42 | 18 | 150 | |||||||||||||
| 10T | 3.98 | 10 | 50 | 41 | 116 | 60 | 19.3 | 185 | |||||||||||||
| 15T | 6.1 | 15 | 75 | 51 | 139 | 73 | 20 | 216 | |||||||||||||
| 20T | 8.4 | 20 | 100 | 62 | 156 | 82 | 28 | 242 | |||||||||||||

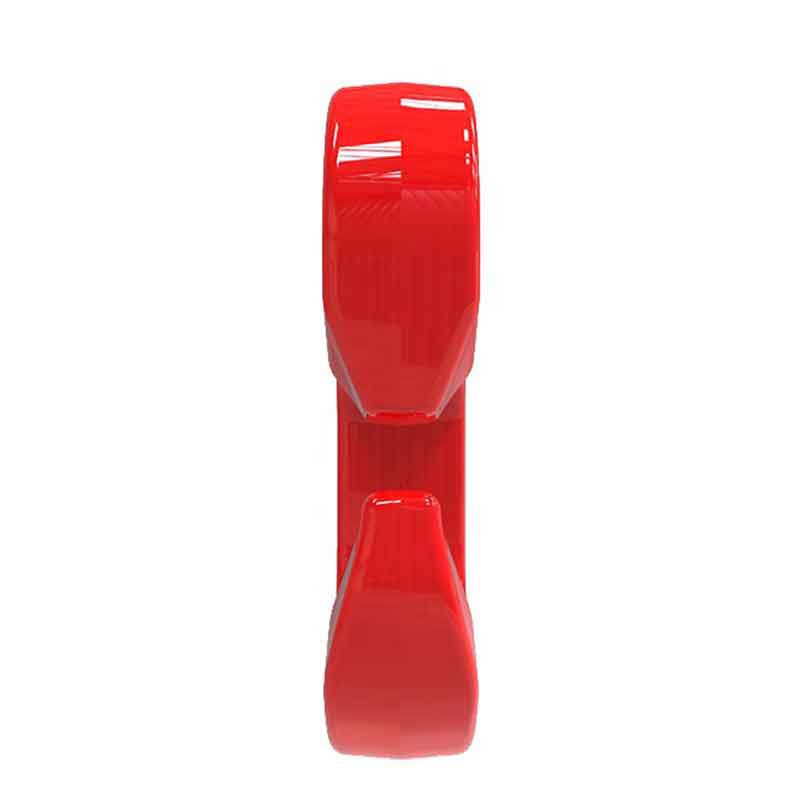

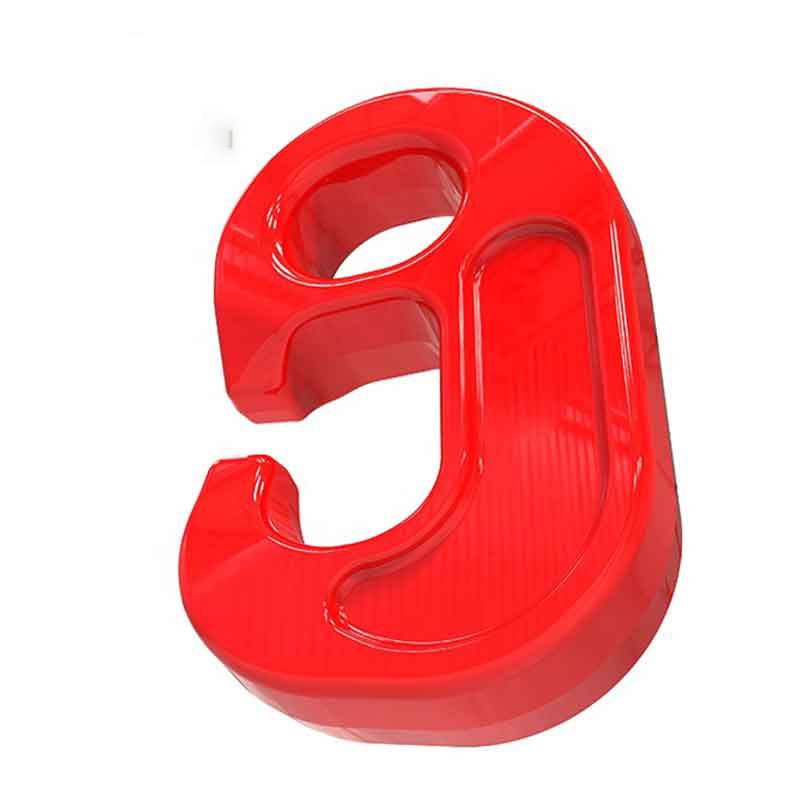

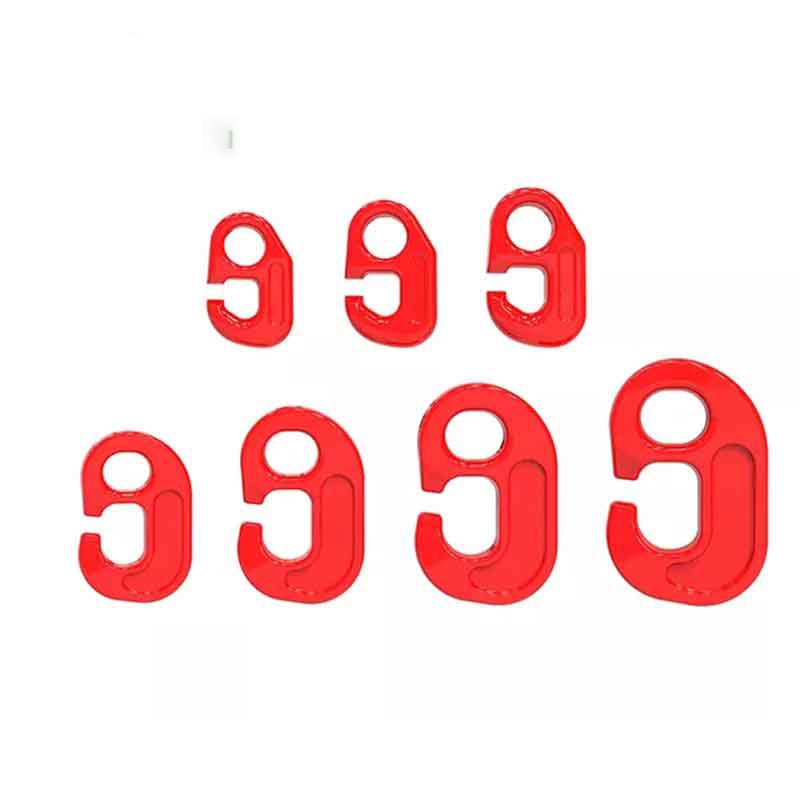

Detailed Photos
China Honyuan Machinery Co., Limited has evolved to become a full service supplier in distributing lifting products, material and handling tools, chains, rigging hardware, lifting slings and steel wire rope to serve our clients needs in the Oil and Gas, Crane and Rigging, Cable Installation, Stevedoring, Marine and General Construction industries. Besides we are also dealing with fasteners and other construction products to meet the requirements from our customers in this line.
