G80 Forged Clevis Pear Shaped Link for Chain

G80 LONG SHAPE OMEGA LINK

Product Properties

Material: Alloy Steel

Shape: U Shape

Usage: Industrial

Color: Red

Condition: New

Transport Package: Carton

Product Description

Complete specifications

Overall use of high quality material.Than ordinary materiai hardness,moisture resistancenot easy to rust


Smooth surface without burrs

Smooth surface without burr,uniform force.Stable structure,aging resistance,long service life


Simple structure easy to use

Adopt professional testing equipment to strictly test the size and quality of products,so as to ensure the standard of products


Quality manufacturer

Can be customized according to customer requirementsa variety of specifications.Can be customized to draw samples.We will provide you with a reference solution

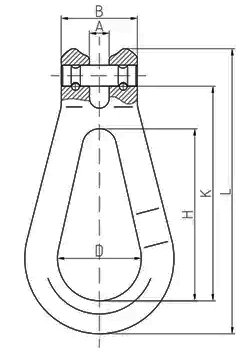

G80 LONG SHAPE OMEGA LINK

SIZE/MM

WEIGHT/KG

WLL/T

B.L/T

A

B

D

K

L

6

0.12

1.12

4.48

8

28

20

47.5

75

7/8

0.17

2.0

8.0

10.5

32.5

25

59

92

10

0.43

3.15

12.6

13

45.5

30

78.5

123

13

1.00

5.3

21.2

15

57.5

46

94

154

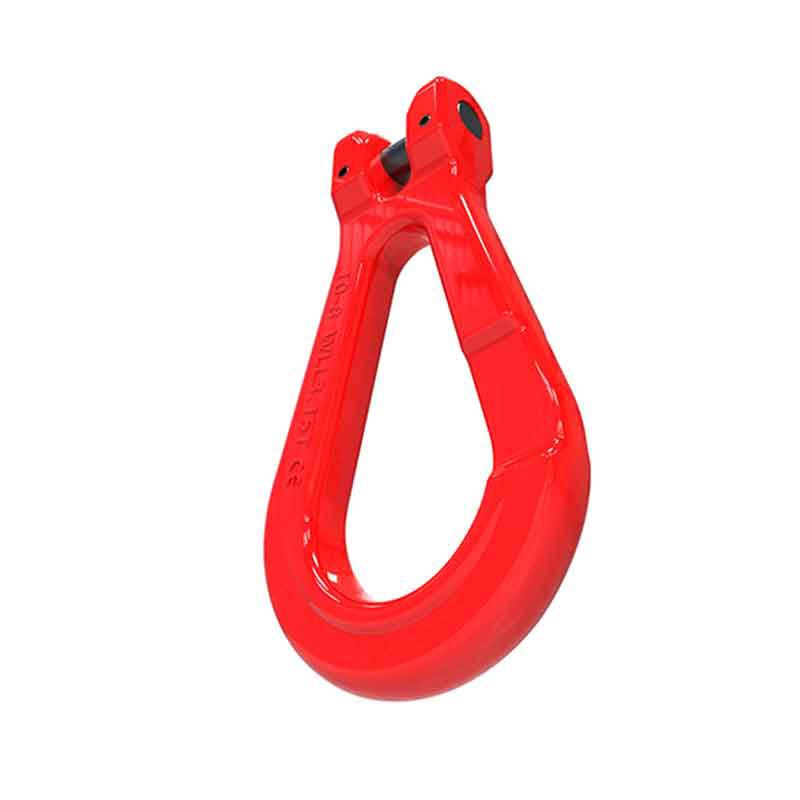

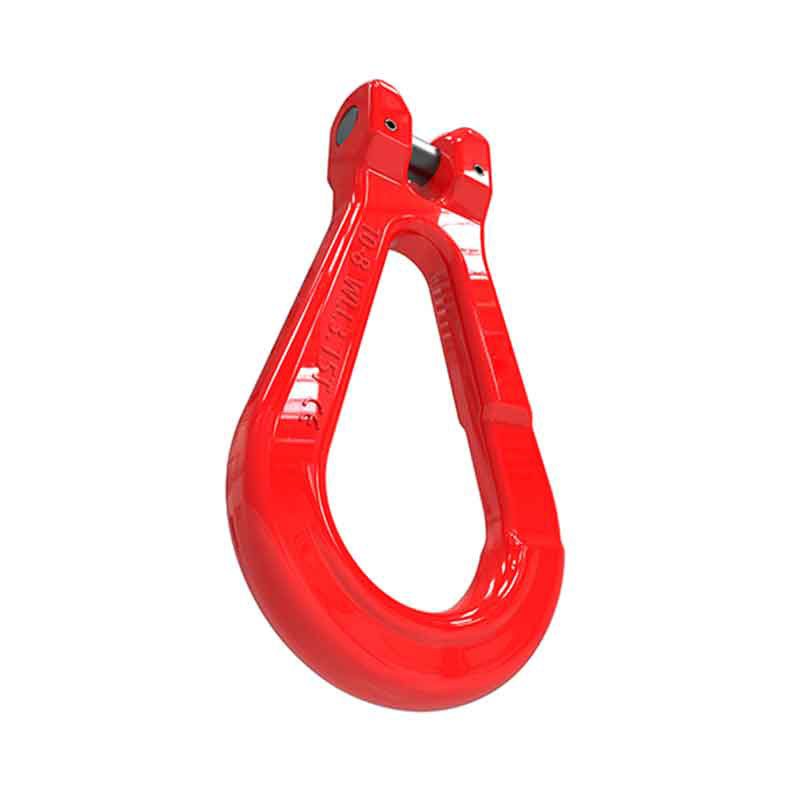

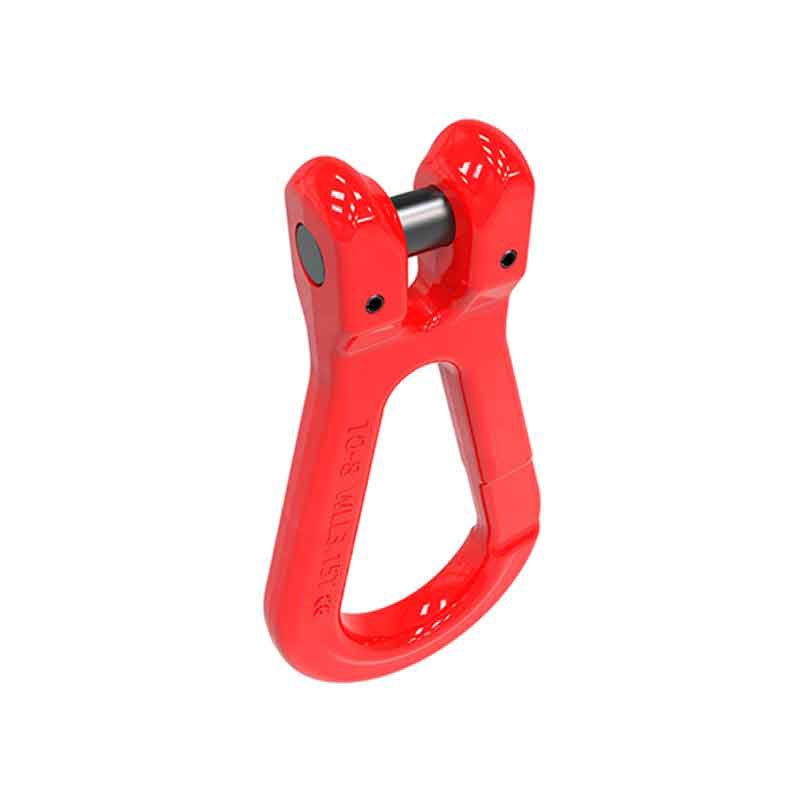

Detailed Photos





Material: 35Crmo
Surface: Powder Platified
Packing: Carton and iron pallet
Treatment: Quenched and Tempered
Breakage test
All load pin are 100% individually inspectde and tested
