Carefully selected materials
Strictlyuse raw materials for production,refuseto cut corners
Mature Technology
Years ofindustry production experiencemature technology
Strict Qualityinspection
Strictly control each procedure and strictlytestthe products
Support customization
Factoryprocessing and manufacturing can be customizedaccording to your reasonable needs

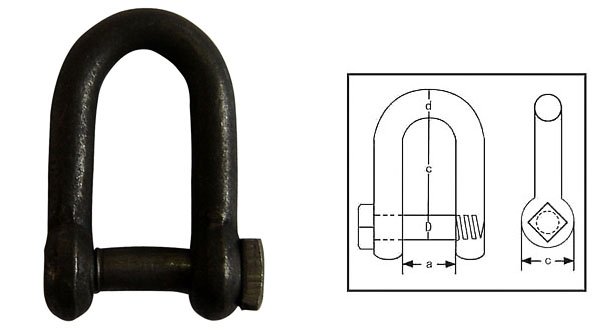

Eurnpean Chain Shackle With Square Head Screw Pin
Product Code | SWL Tone | D (mm) | d (mm) | a (mm) | c (mm) | e (mm) | Weight Each (kg) |
HYR01-S0801 | 0.2 | 8 | 8 | 16 | 32 | 18 | 7 |
HYR01-S0802 | 0.3 | 10 | 10 | 20 | 38 | 20 | 13.4 |
HYR01-S0803 | 0.5 | 12 | 12 | 25 | 51 | 26 | 25 |
HYR01-S0804 | 0.8 | 16 | 16 | 32 | 63 | 33 | 53 |
HYR01-S0805 | 1.1 | 20 | 20 | 38 | 76 | 40 | 92 |
HYR01-S0806 | 1.5 | 22 | 22 | 45 | 88 | 50 | 140 |
HYR01-S0807 | 2 | 25 | 25 | 5l | 102 | 57 | 215 |
HYR01-S0808 | 2.6 | 28 | 28 | 57 | 114 | 68 | 300 |
HYR01-S0809 | 3 8 | 32 | 32 | 63 | 127 | 73 | 455 |
HYR01-S0810 | 4.5 | 38 | 38 | 76 | 152 | 85 | 760 |
Detailed Photos
