Complete specifications
Overall use of high quality material.Than ordinary materiai hardness,moisture resistancenot easy to rust
Smooth surface without burrs
Smooth surface without burr,uniform force.Stable structure,aging resistance,long service life
Simple structure easy to use
Adopt professional testing equipment to strictly test the size and quality of products,so as to ensure the standard of products
Quality manufacturer
Can be customized according to customer requirementsa variety of specifications.Can be customized to draw samples.We will provide you with a reference solution

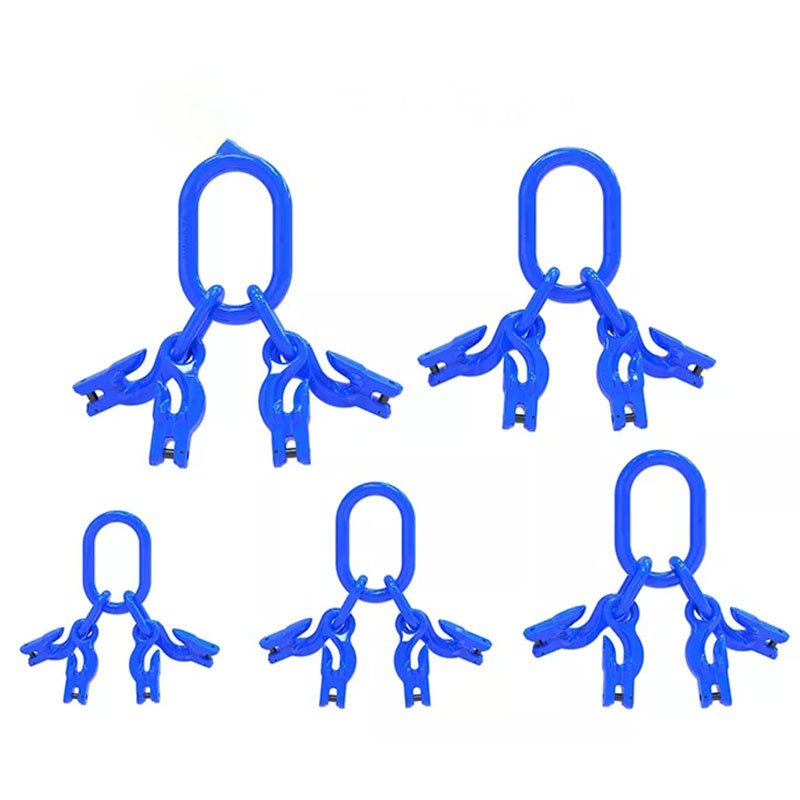

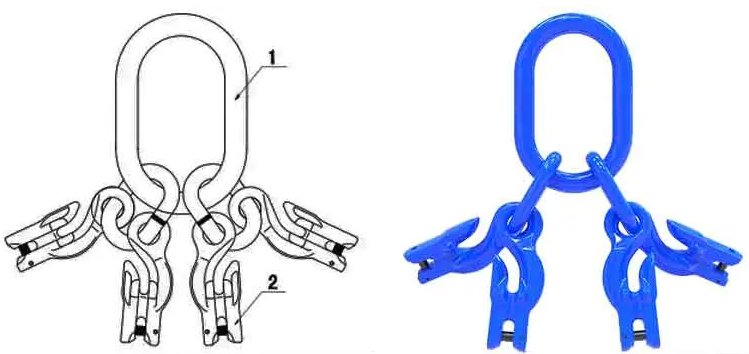

G100 Master Link Assembly with Grab Hook
| ITERM NO. | WEIGHT kg | W.L.L. ton | B.F. ton | ACCESSORIES 1 | ACCESSORIES 1 |
| HY1068-6 | 2.5 | 3 | 12 | Master Link Assembly | HY-10516-10 x 4 |
| HY1068-8 | 5.09 | 5.3 | 21.2 | Master Link Assembly | HY-10518-10 x 4 |
| HY1068-10 | 9.02 | 8 | 32 | Master Link Assembly | HY-105110-10 x 4 |
| HY1068-13 | 15.94 | 14 | 48 | Master Link Assembly | HY-105113-10 x 4 |
| HY1068-16 | 28.1 | 21.2 | 84.4 | Master Link Assembly | HY-105116-10 x 4 |

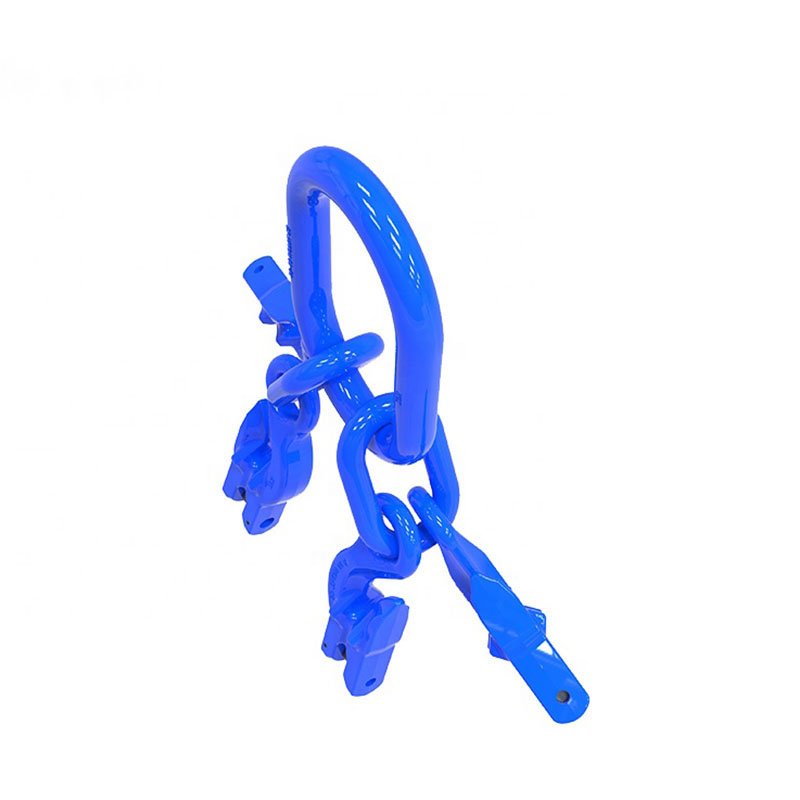

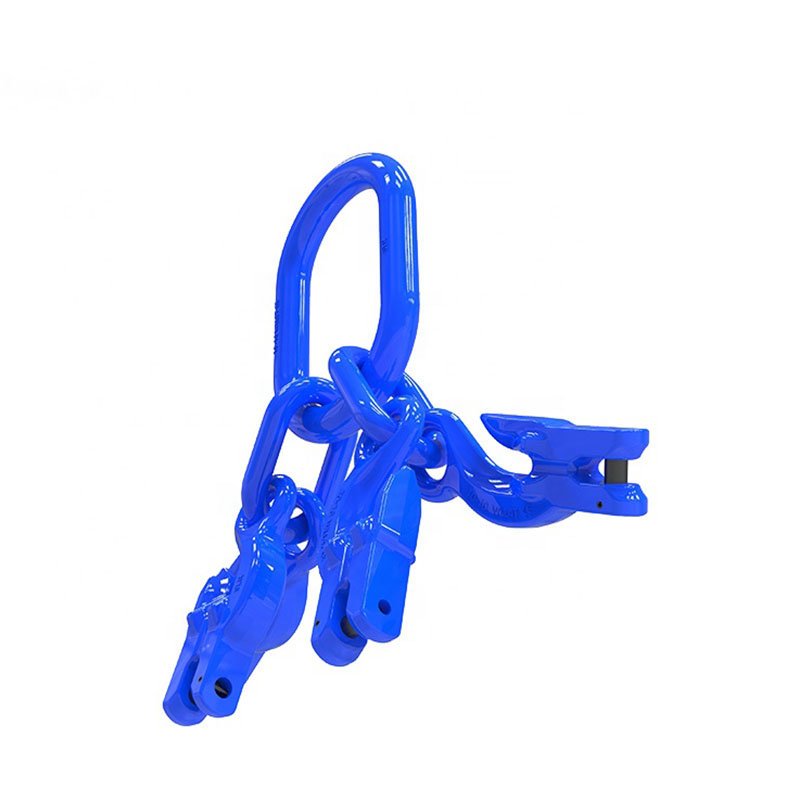

Detailed Photos
Notes
1) Before each use, the operator must perform a safety inspection on the sling and use it only after being qualified;
2) The sling must be inspected regularly by professionals (trained qualified personnel) every month;
3) If it is found that the dimensional wear of the sling is greater than 5% of the original size, it must be replaced in time;
4) If it is found that the amount of dimensional deformation exceeds 3% of the original size, it must be replaced in time to ensure safety.
