Alloy steel
Using superior grade rawmaterial marine gradealloy steel
Painted
Precision cast,painted finish weather resistant high stability and strength
All specificationsin stock
Fast connect and disconnectwidely used in outdoor&indoorall specificationsin stock，
large quantity available
G70 Clevis Grab Hooks 330A

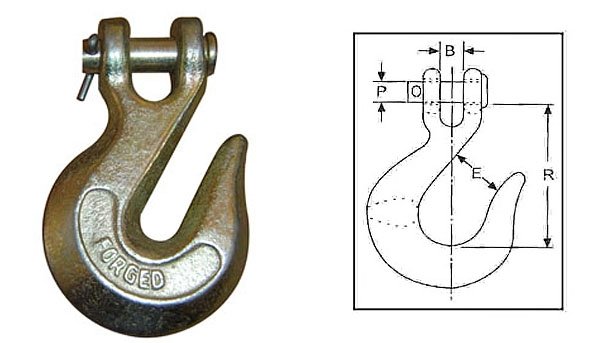

Product | Size of chain | WLL | Dimensions(in) | Weights | ||||
H-330 | A-330 | B | E | P | R | |||
HYR01-H0101 | 1/4” | 2600 | 3600 | 7/6 | 11/32 | 3/8 | 1-13/16 | 38 |
HYR01-H0102 | 5/16” | 3900 | 5400 | 1/2 | 7/16 | 3/8 | 2-5/32 | 70 |
HYR01-H0103 | 3/8” | 5400 | 7500 | 19/32 | 1/2 | 7/16 | 2-15/32 | 1.04 |
HYR01-H0104 | 7/16” | 7200 | 1000 | 21/32 | 9/16 | 9/16 | 2-25/32 | 1.31 |
HYR01-H0105 | 1/2” | 9200 | 12000 | 3/4 | 5/8 | 5/8 | 3-7/32 | 2.06 |
HYR01-H0106 | 5/8” | 12750 | 19000 | 29/32 | 3/4 | 3/4 | 4-3/32 | 4.25 |
HYR01-H0107 | 3/4” | 18500 | 27000 | 15/16 | 15/16 | 7/8 | 4-5/8 | 6.5 |
Detailed Photos
Welcome to our products.
G80 CLEVIS SLIING HOOK., forged alloy steel, painted red.
Material: Carbon steel, alloy steel.
Surface: Self colored, painted, or zinc plated.
Packing: Gunny bag, wooden case, plastic drum.
Certification: SGS, ISO9001
We can supply products as per customer's requipments. If you have any interest in our products
